Factory Custom High Precision Manual Universal Lathe CQ6236 Horizontal Lathe Machine FM320A/FM320B

Factory direct sale heavy duty horizontal lathe machine is with very competitive price, and is suitable for turning or cast iron and steel work piece,turning of non-ferrous metal parts of big or medium sizes.It can do external cylindrical surface turning,inner hole and end face turning.It can also turn various internal and external metric,inch,module and diametrical pitch threads,the top slide can be used independently for turning of short taper.These lathes are of high power,high rigidity and wide rotating speed range,so it can be used for high speed and strong force turning.Optional accessories include:DRO, chuck guard, toolpost guard, tin coated cutters, lead screw guard, taper turning attachment and quick change tool post .

Specification	Unit	FM320A	FM320B
Max.swing over bed	mm	320
Max.swing over cross slide	mm	200
Distance between centers	mm	600/750	900
Bed width	mm	187	180
Spindle speeds(Number)	r/min	12 steps 60-160	125-2000
Spindle bore	mm	38	38
Spindle taper		MT5	MT5
Metric threads range(kinds)	mm	22kinds 0.2-7	18kinds 0.2-3.5
Inch threads rangs(Kinds)			21kinds 8-56T.P.I
Threads diametral		(31kinds) 8-120dp	\
Threads module pitches		( 21kinds) 0.2-3.5mp	\

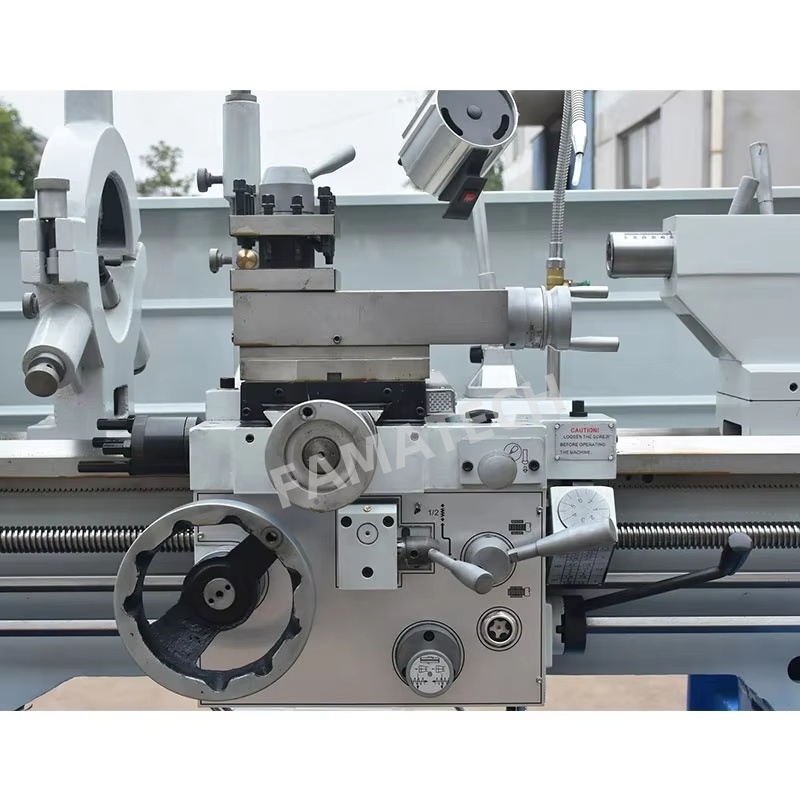

Compound rest travel	mm	100	85
Cross slide travel	mm	160	165
Range of longitudinal feeds	mm/r	0.1-1.4	0.017-0.25
Range of cross feeds	mm/r	0.045-0.6	0.07-0.52

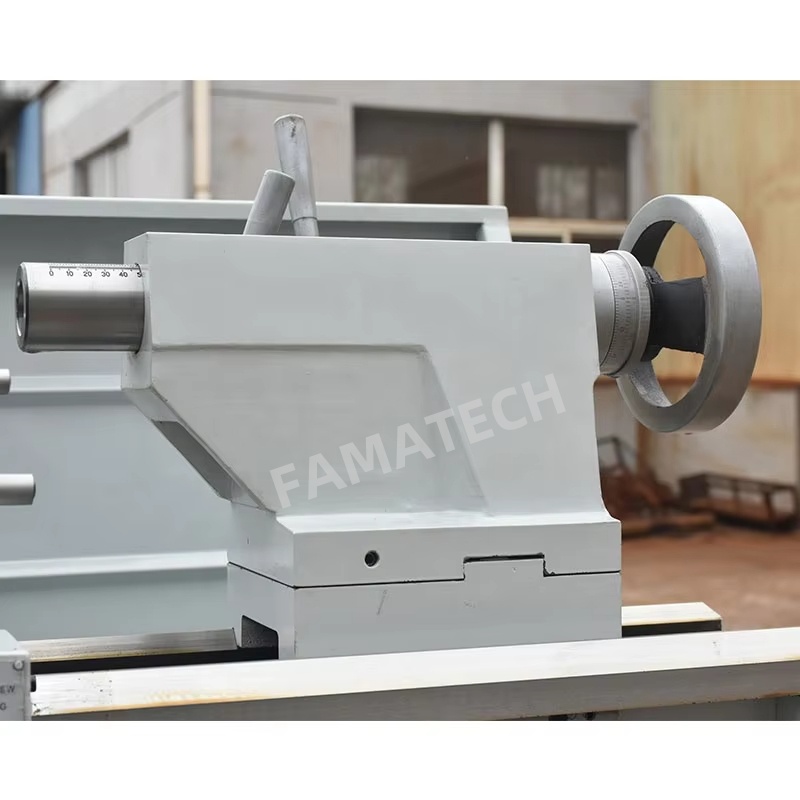

Travel of tailstock sleeve	mm	80	80
Taper of tailstock sleeve	mm	MT3	MT3
Spindle motor power	Kw	0.75	1.5
Size of tool shank	mm	12x12	12x12
Packing size(L×W×H)	mm	1470x770x650	160x750x700
Net weight	kg	345/320	260
