FM320/FM300 High Precision Metal Bench Lathe Machine Gap Bed Lathe Machine CQ6232G CQ6236G
Factory direct sale heavy duty horizontal lathe machine is with very competitive price, and is suitable for turning or cast iron and steel work piece,turning of non-ferrous metal parts of big or medium sizes.It can do external cylindrical surface turning,inner hole and end face turning.It can also turn various internal and external metric,inch,module and diametrical pitch threads,the top slide can be used independently for turning of short taper.These lathes are of high power,high rigidity and wide rotating speed range,so it can be used for high speed and strong force turning.Optional accessories include:DRO, chuck guard, toolpost guard, tin coated cutters, lead screw guard, taper turning attachment and quick change tool post .
Specification | Unit | FM320 | FM300 |
Max.swing over bed | mm | 320 | 300 |
Max.swing over gap | mm | 430 | 476 |
Max.swing over cross slide | mm | 180 | 198 |
Distance between centers | mm | 910/1000 | |
Spindle speeds(Number) | r/min | 65-1400/65-1810 | |
Spindle bore | mm | 38 | |
Spindle taper | MT5 (51mm as MT6) | ||
Metric threads range(kinds) | 0.4-7 | ||
Inch threads rangs(Kinds) | 4-60 T.P.I) | ||
Range of longitudinal feed | mm/rev | 0.079-1.291 | |
Range of Cross feed | mm/rev | 0.017-0.276 | |
Spindle motor power | kw | 1.1/1.5 | |

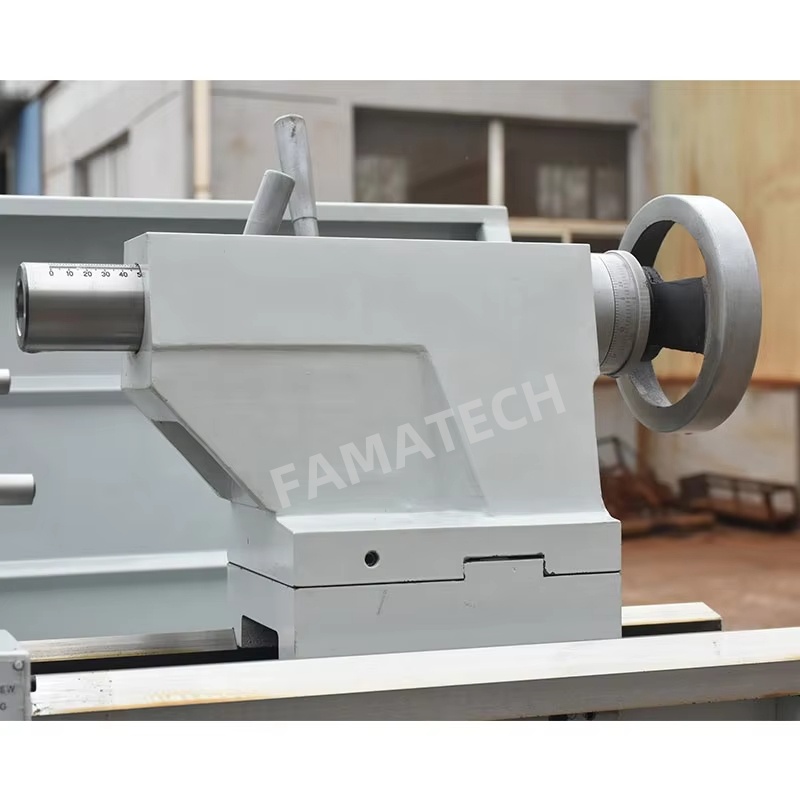

Tailstock quill travel | mm | 100 | |
Tailstock quill taper | MT3 | ||
Packing size(L*W*H) | mm | 1940*750*760 | 1480*750*760 |
Main machine weight(N/G) | kg | 500/550 | 620/670 |
