FC32L/FC36L/FC40L Low Cost CNC Lathe Slant Bed Machine Tool CNC Lathe Machine Price Mini Metal Cnc Turning Machine-SLANT BED CNC LATHE MACHINE-SHANGHAI FAMATECH CNC MACHINE TOOL CO., LTD.

Specification	Unit	FC36L-500/750	FC32L-500	FC40
Distance between centers		500/750	500	400
Max. Swing over bed	mm	360	320	400
Max. Swing over cross slide	mm	180	160	180
Spindle type		Cartridge type spindle	Cartridge type spindle	Cartridge type spindle
Spindle speed	rpmr	4000	4000rpm	4000rpm
Spindle bore	mm	56mm(opt. 66mm)	56mm	61mm,79mm
Max. Dia. Of through-hole	mm	40mm(opt.50mm)	40mm	50mm,60mm
Spindle nose	mm	A2-5,A2-8	A2-5	A2-6
X axis travel	mm	210mm	210mm	470mm
Z axis travel	mm	500/750mm	500mm	400mm
X/Z axis rapid traverse	m/min	15/15m/min	15/15m/min	15/15m/min

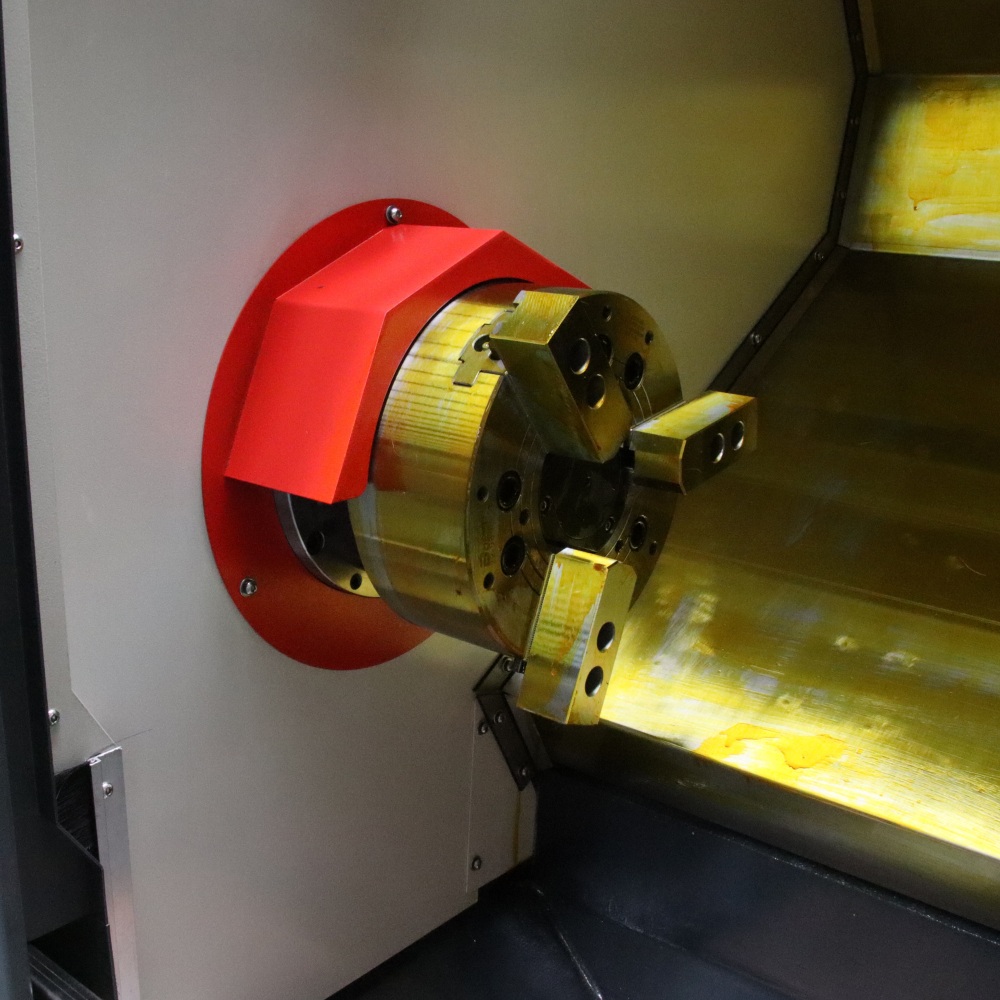

Chuck type		Hydraulic chuck	Hydraulic chuck	Hydraulic chuck
Chuck diameter	mm	160(6”)/200mm(8”)	160mm(8”)	200mm(8”)

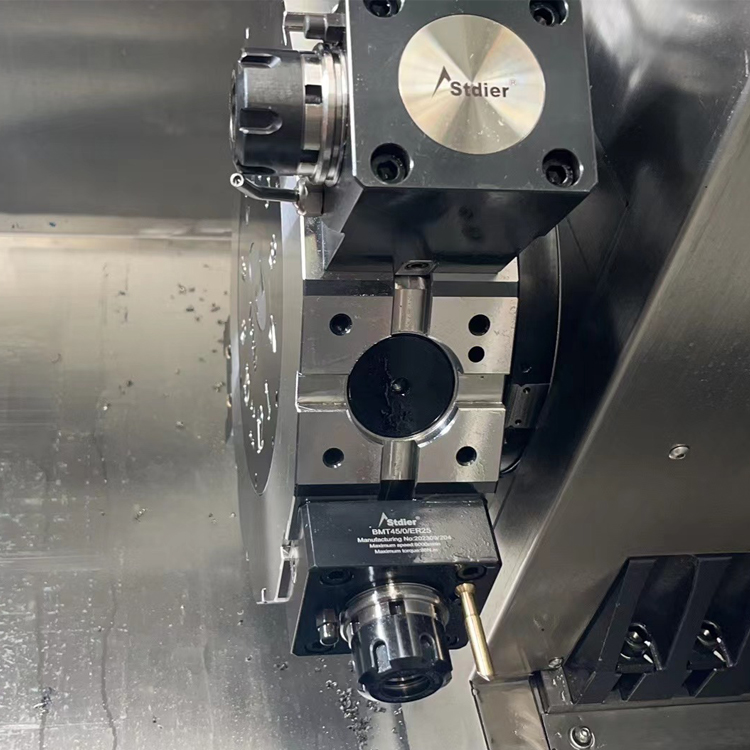

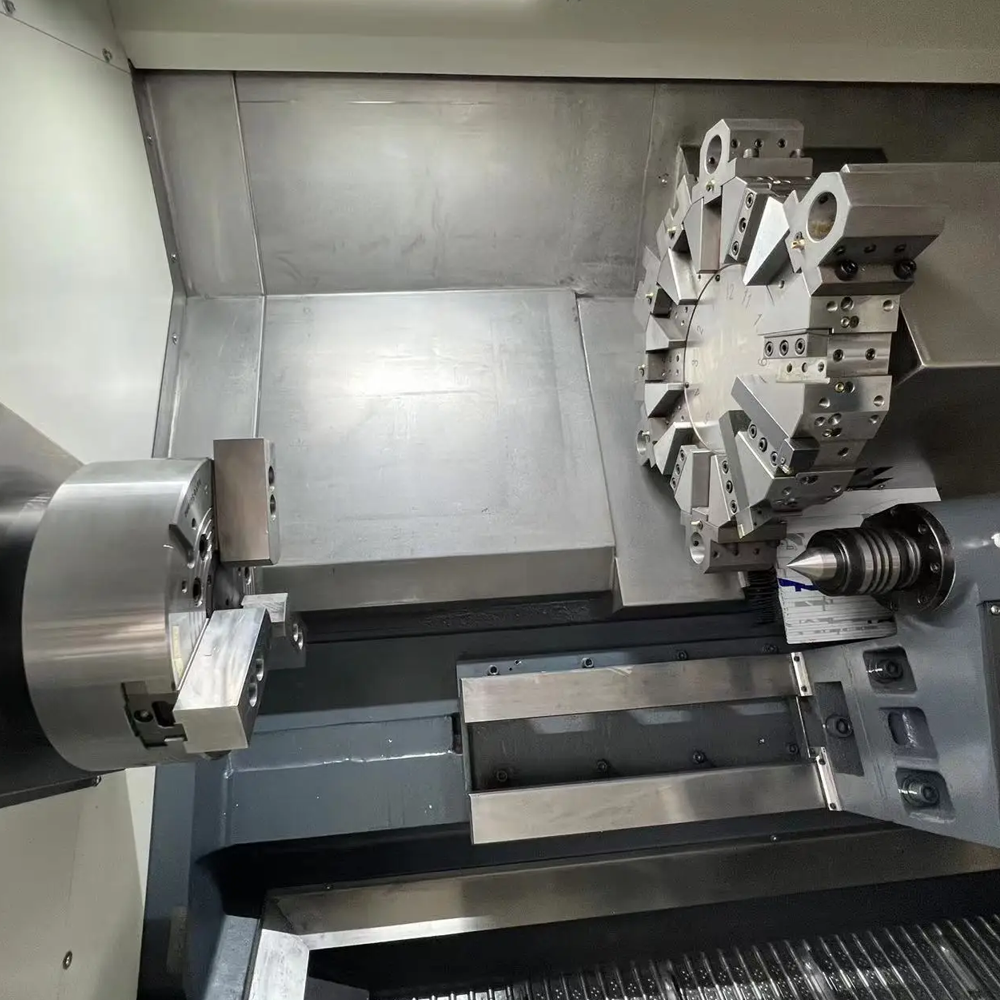

Turret type		Electrical turret Opt.Hydraulic turret	Electrical turret Opt.Hydraulic turret	Electrical turret, Opt.Hydraulic turret*gang tool/6
Tool position number	kva	6 stations/8 stations	6 stations/8 stations	8 stations/812 stations
Tailstock type	mm	Hydraulic sleeves	Hydraulic sleeves	No tailstock
External diameter	mm	60	60	/
Max. travel	mm	80	80	/
Taper of bore		MT4	MT4	/
Spindle motor type		Servo spindle motor	Servo spindle motor	Servo spindle motor
Spindle motor power	KW	5.5KW, 7.5KW	4 KW, 5.5KW	5.5KW, 7.5KW
Packing size(LWH)	W	370	370	200
Packing size(LWH)	mm	395022602280mm	295022602280mm	296022202220mm

SLANT BED CNC LATHE MACHINE
