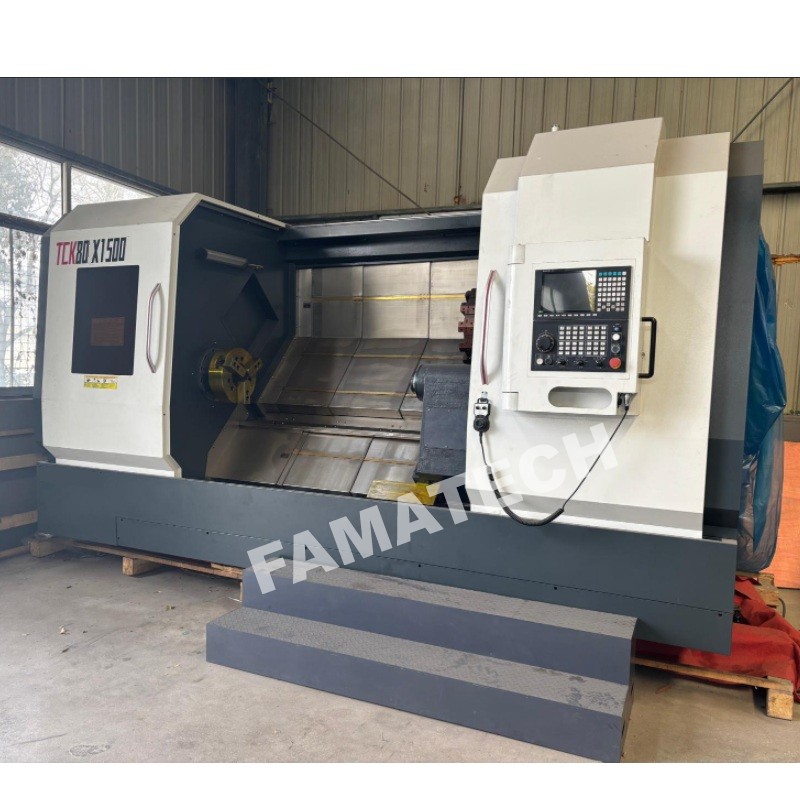

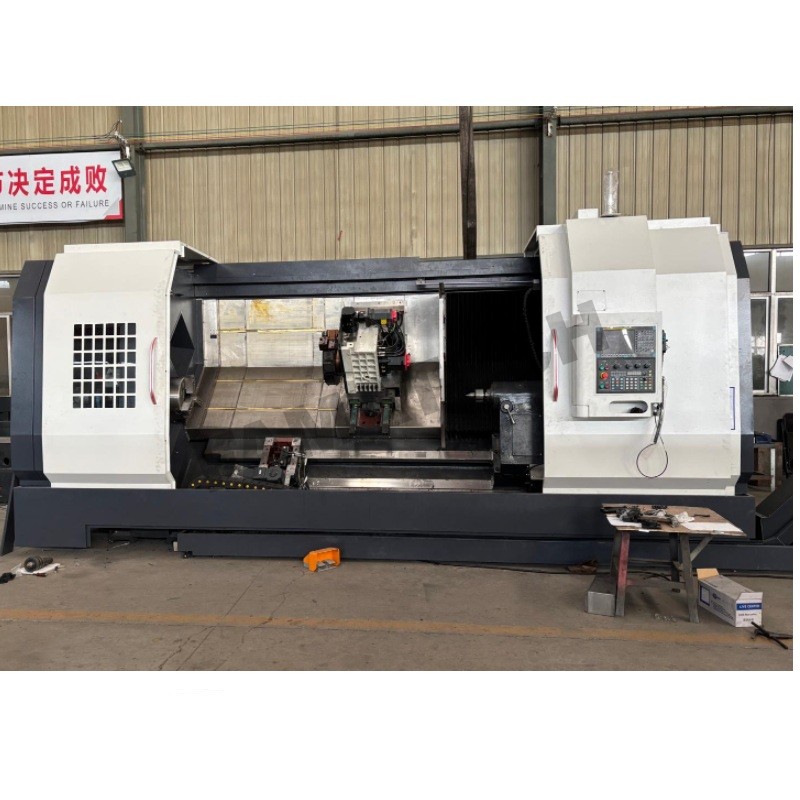

TCK80y Slant Bed CNC Athet Milling Machine GSK New Condition Competitive Price Slant Bed Turning Center
CNC LATHE INTRODUCTION
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
FEATURES
One-piece bed adopts high strength iron to ensure rigidity and precision,Slant bed design and linear guideways enqure process speed and accuracy.Carriage and guide-way contact surface use Turcite B to maintain accuracy
ITEM | Unit | TCK80Y |
Nc System | FANUC 0i-TF | |
Max.swing over bed | mm | 860 |
Maximum Machining Diameter | mm | Axis type:630 Disk type:800 |
Max.cutting length of work-piece | mm | 1000 |
Max.swing over cross slide | mm | 630 |
Spindle nose | / | A2-11 |
Spindle bore | mm | 104(optional 130mm) |
Hole through spindle | / | 92(115) |
Spindle range | r/min | 1500(800) |
Spindle power | KW | 22 |
Chuck diameter | inch | 15” |
X rapid travel speed | m/min | 12 |
Z rapid travel speed | m/min | 15 |
X axis travel | mm | 430 |
Z axis travel | mm | 1050 |
Y axis travel | mm | +75 |
Tailstock sleeve diameter | mm | 150 |
Travel of tailstock | mm | 160 |
Taper of tail stock | / | MT6 |

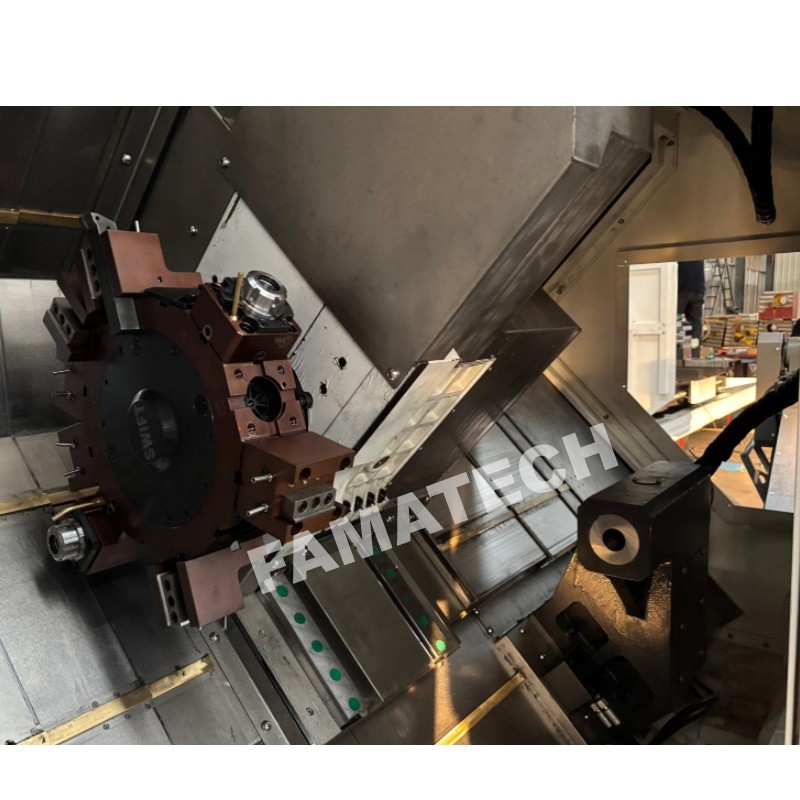

Standard tool turret | / | BMT65 12 stations tool turret(living tools) |
Tool section | mm | 32x32 |
Boring tool | mm | Ф40/Ф32/Ф25 |
Machine Weight | kg | 8300 |
