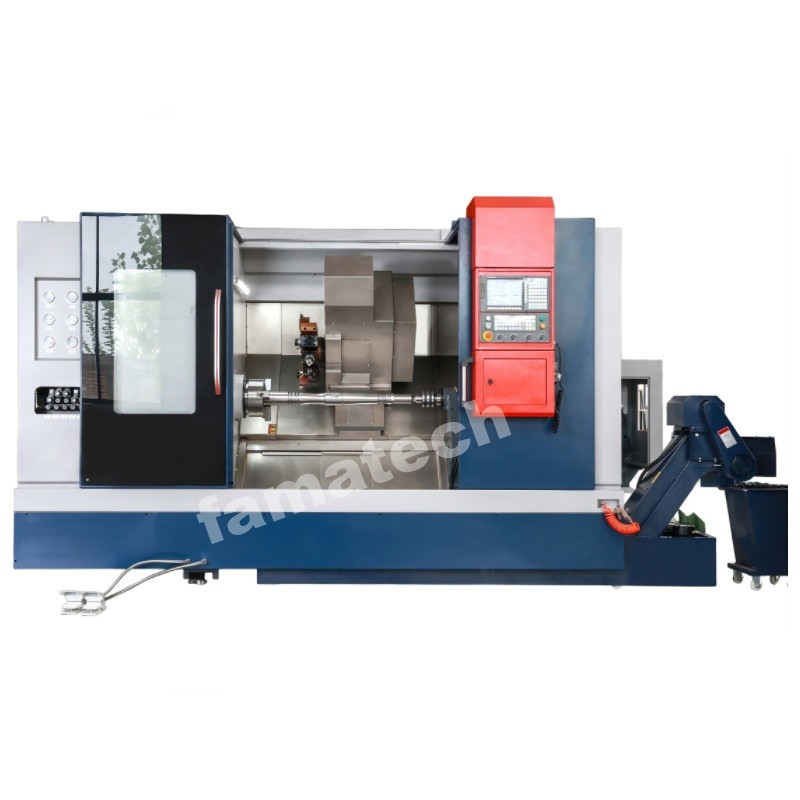

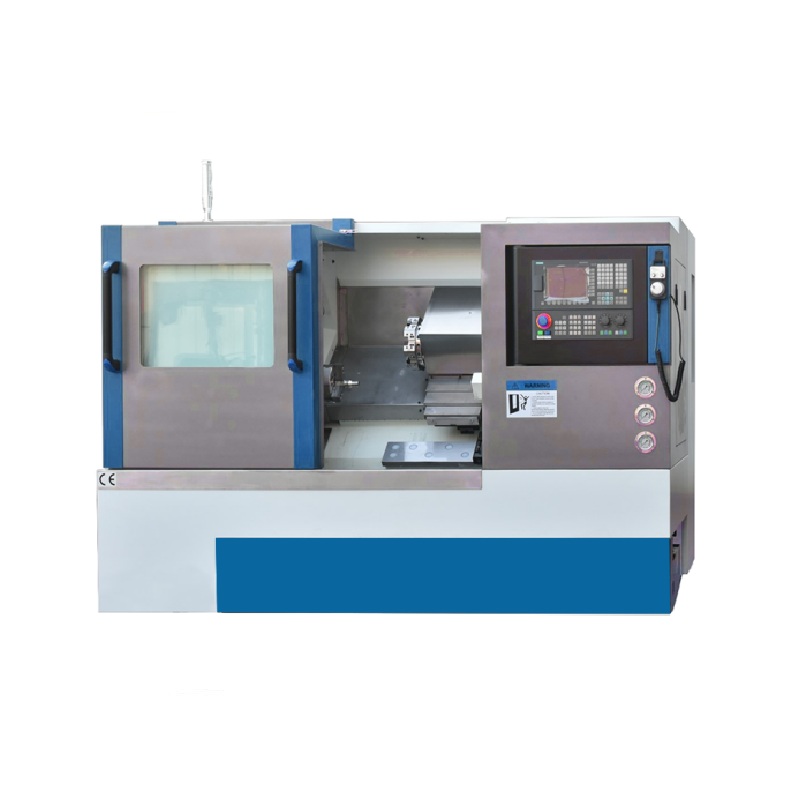

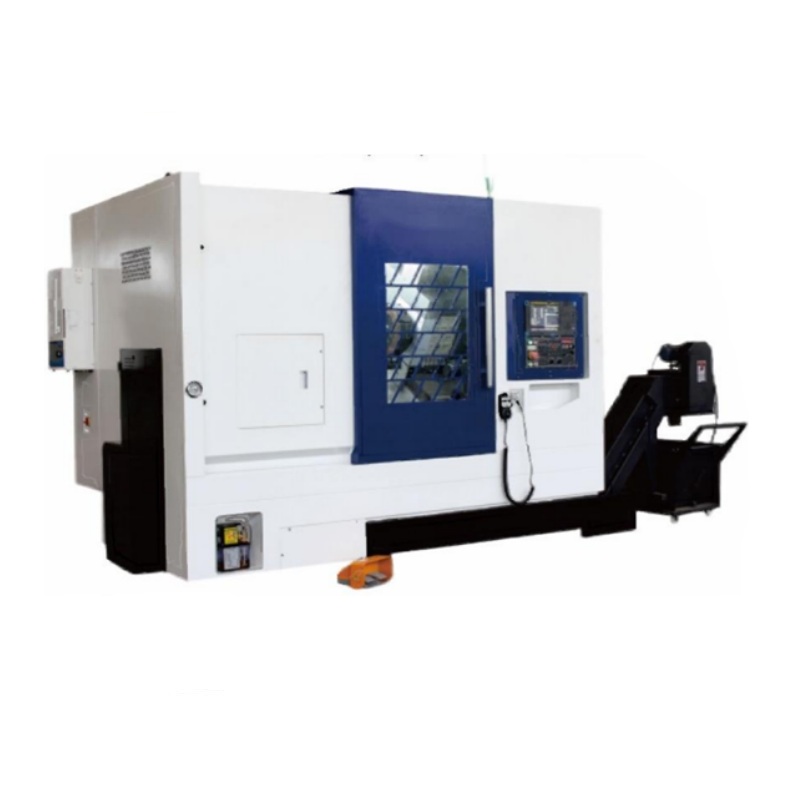

Slant bed cnc lathe machine FC60L/FC50L/FC40L
Model | Unit | FC60L-1000 | FC50L-750 | FC40L-500/750 |
Bed structure & rail | 1000 | 750 | 500/750 | |
Max. Swing over bed | mm | 600 | 500 | 400 |
Max. Swing over cross slide | mm | 300 | 250 | 220 |
Spindle type | Cartridge type spindle | Cartridge type spindle | Cartridge type spindle | |
Spindle speed | rpm | 3000 | 4000rpm,3000rpm | 4000rpm,3000rpm |
Spindle bore | mm | 86 | 66mm,86m | 66mm,79mm |
Max. Dia. Of through-hole | mm | 70mm | 50mm,70mm | 50mm,60mm |
Spindle nose | mm | A2-8 | A2-6, A2-8 | A2-6 |
X axis travel | mm | 350mm | 280mm | 250mm |
Z axis travel | mm | 1000mm | 750mm | 500mm/750mm |
X/Z axis rapid traverse | m/min | 12/12m/min | 15/15m/min | 15/15m/min |
Chuck type | Hydraulic chuck | Hydraulic chuck | Hydraulic chuck | |
Chuck diameter | mm | 305mm(12”) | 200mm(8”),250mm(10”) | 200mm(8”),250mm(10”) |
Turret type | Electrical turret Hydraulic turret Power turret | Electrical turret Hydraulic turret Power turret | Electrical turret, Hydraulic turret Power turret | |
Tool position number | kva | 6 stations/8 stations/12 stations | 6 stations/8 stations/12 stations | 6 stations/8 stations/12 stations |
Tailstock type | mm | Hydraulic sleeves | Hydraulic sleeves | Hydraulic sleeves |
External diameter | mm | 90 | 90 | 75 |
Max. travel | mm | 120 | 120 | 80 |
Taper of bore | MT5 | MT5 | MT4 | |
Spindle motor type | Servo spindle motor | Servo spindle motor | Servo spindle motor | |
Spindle motor power | KW | 11KW, 15KW | 7.5KW, 11KW | 7.5KW, 11KW |
Packing size(L*W*H) | W | 370 | 370 | 370 |
Packing size(L*W*H) | mm | 3800*2270*2380mm | 3300*2270*2280mm | 300/3300*2270*2280mm |
Net/Gross weight | kg | 4900/5200 | 4200/4500 | 4200/4500 |
