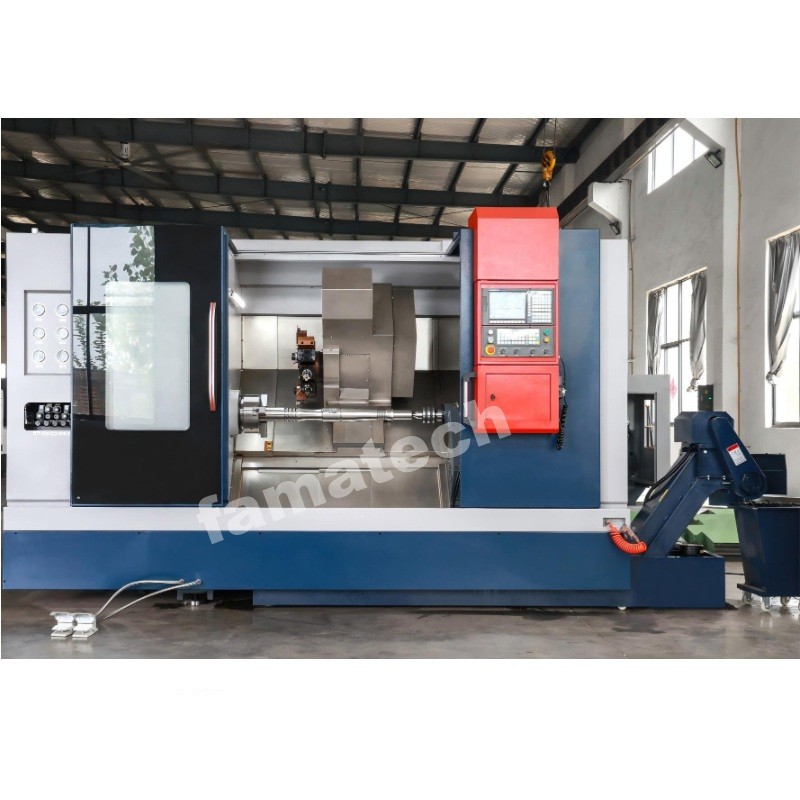

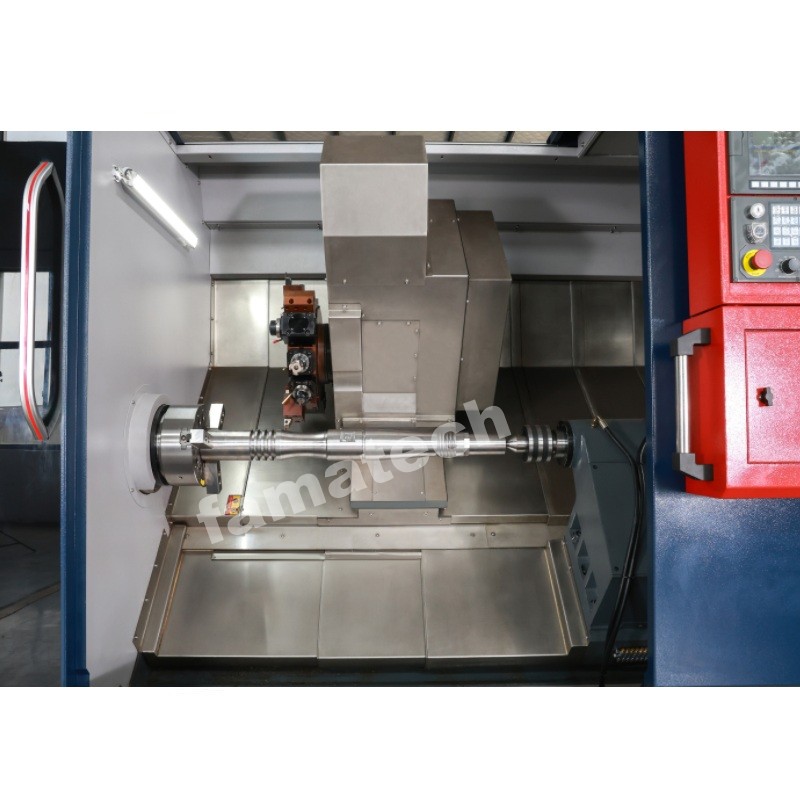

FAMATECH factory direct sale CK80 CNC Lathe Slant Bed Y C Axis Horizontal HEAVY Duty SLANT bed cnc lathe machine
CNC LATHE INTRODUCTION
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
FEATURES
One-piece bed adopts high strength iron to ensure rigidity and precision
Slant bed design and linear guideways enqure process speed and accuracy
Carriage and guide-way contact surface use Turcite B to maintain accuracy
MODEL | CK80 | ||||
Bed structure & Rail | Slant bed / Hard Rail | ||||
Capacity | |||||
Swing over bed | mm | Φ850 | |||
Swing over cross slide | mm | Φ650 | |||
Cutting diameter | mm | Φ500 | |||
Distance between center | mm | 1100 | 1600 | 2100 | 3100 |
Processing length | mm | 1000 | 1500 | 2000 | 3000 |
Spindle | |||||
Spindle type | Spindle Unit | ||||
Spindle speed | RPM | 3000 | |||
Spindle bore | mm | Φ105 | |||
Dia.of through-hole | mm | Φ90 | |||
Spindle nose | ASA | A2-11 | |||
Stroke & Feeding Speed | |||||
X axis travel | mm | 350 | |||
Z axis travel | mm | 1100 | 1600 | 2100 | 3100 |
X/Z axis Rapid traverse | m/min | 15 / 15 | |||
Chuck | |||||

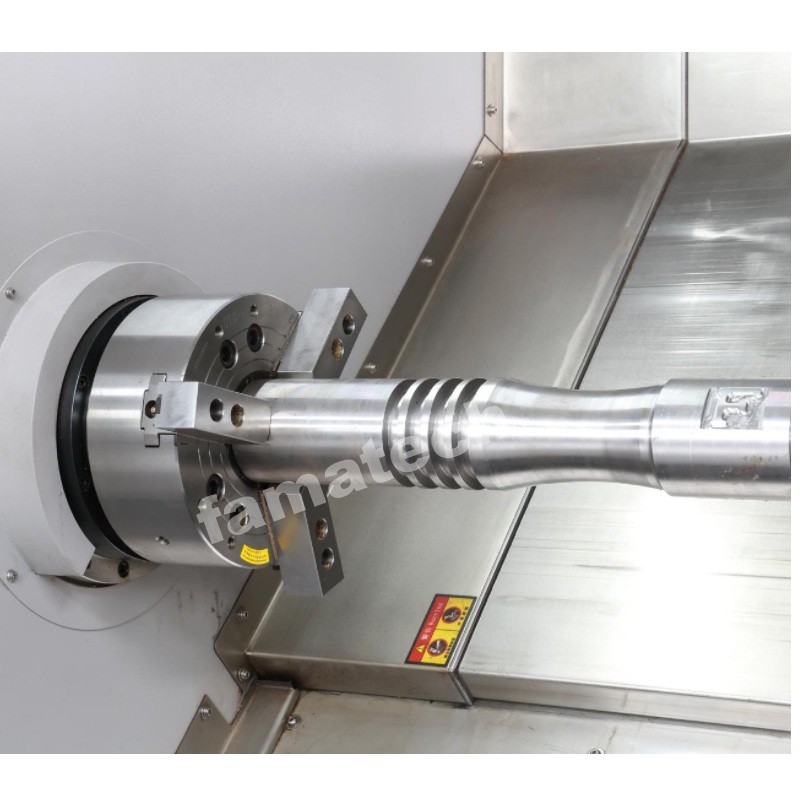

Chuck type | Hydraulic Chuck | ||||
Chuck diameter | mm | 305 [12''] (opt: 380 [15''] ) | |||
Turret | |||||

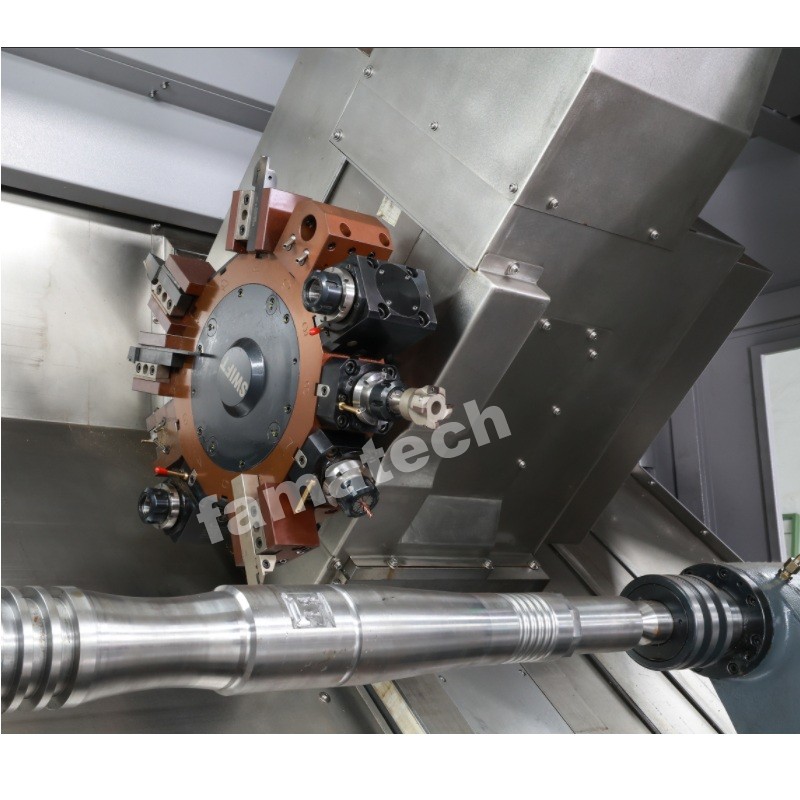

Turret type | Power turret BMT65 | ||||
Tool number | 12 T | ||||
Outer diameter tool/OD | mm | 。32 | |||
Inner diameter tool/ID | mm | Φ40 | |||
Tailstock Sleeve | |||||
Tailstock type | Hydraulic Sleeve | ||||
External diameter | mm | Φ110 | |||
Max. travel | mm | 120 | |||
Taper of bore | MT #6 | ||||
System-SIEMENS | |||||
Controller | SIEMENS 808D-15 | ||||
Spindle motor | SIEMENS Servo 15 kw | ||||
X axis motor | SIEMENS Servo motor 3kw | ||||
Z axis motor | SIEMENS Servo motor 5.5kw | ||||
System-GSK | |||||
Controller | GSK 980TDi | ||||
Spindle motor | GSK Servo 15 kw | ||||
X axis motor | GSK Servo motor 3kw | ||||
Z axis motor | GSK Servo motor 5.5kw | ||||
System-FANUC | |||||
Controller | FANUC Oi-TF Plus | ||||
Spindle motor | FANUC Servo 15 kw | ||||
X axis motor | FANUC Servo motor 3kw | ||||
Z axis motor | FANUC Servo motor 5.5kw | ||||
Y axis motor | Servo motor 2.4kw | ||||
Driven tool motor | Servo motor 2.4kw | ||||
Coolant pump power | w | 480w | |||
Machine Dimensions | |||||
Dimension(L×W×H) | mm | 4600/5600/6500/7300 x1800x1950 | |||
Packing size(L×W×H) | mm | 4800/5800/6700/7500 X2300X2550 | |||
Gross weight | kg | 8500/9000/10700/12000 | |||
