SHANGHAI FAMATECH CNC MACHINE TOOL CO., LTD.

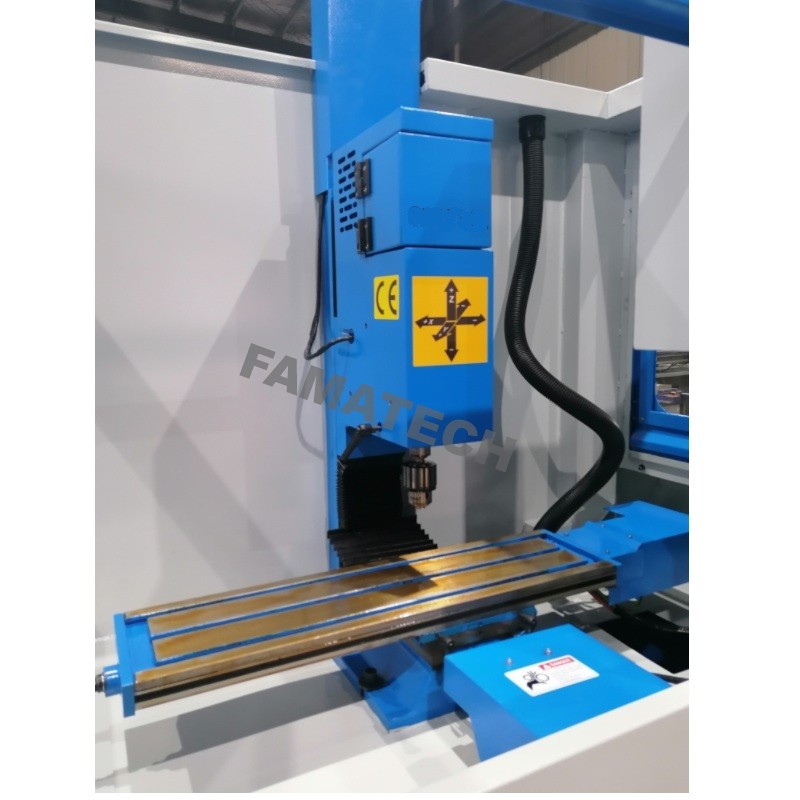

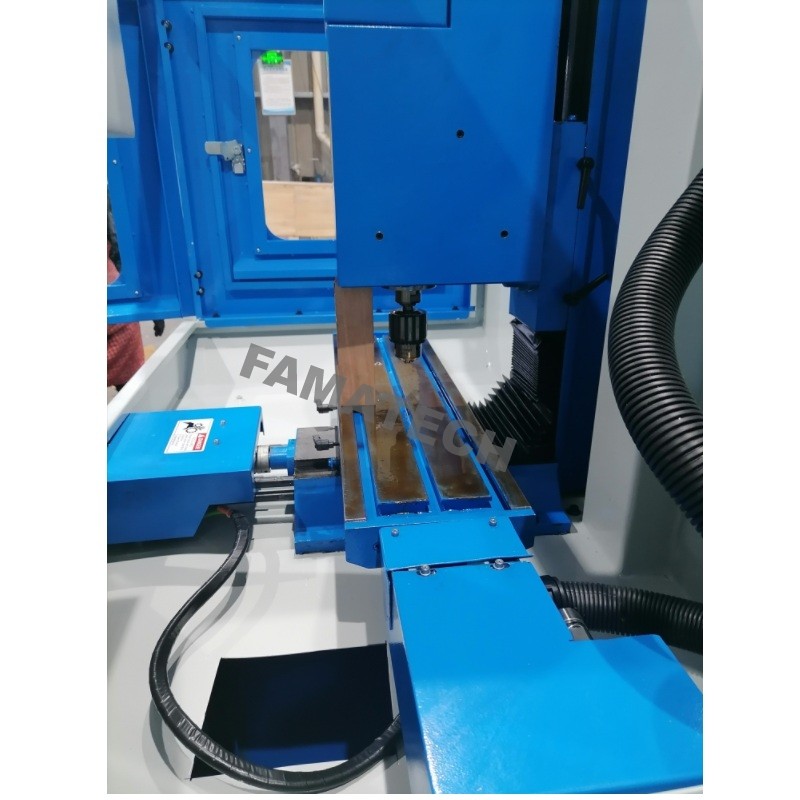

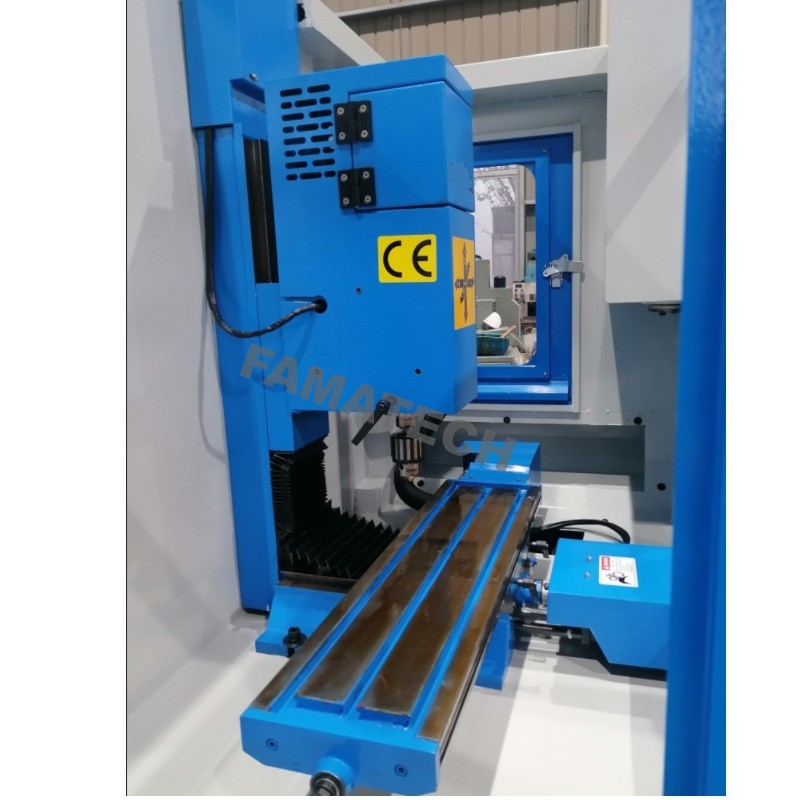

Factory direct sale DM20CNC Small Mini Cnc Milling Machine in China 20mm Gsk/Fanuc/siemens Cnc Milling Machine
This mini CNC milling machine features a high-frequency quenched and precision-ground cast iron bed, ensuring durability and accuracy. With a compact design, it offers a 20mm maximum drilling diameter, 0.02mm positioning accuracy, and supports light-duty machining. Equipped with a 750W/1100W motor and MT3 spindle taper, it delivers reliable performance for precision parts processing. The product is CE-certified, guaranteeing compliance with EU safety standards and enabling market access for buyers.
Model | DM20 |
Maximum drilling diameter | Φ20 |
Workbench size | 500*180 |
X-axis travel | 290mm |
Y-axis travel | 160mm |
Z-axis travel | 380 mm |
X-axis 80 motor torque | 3.2N.m |
Y-axis motor torque | 3.2N.m |
Z-axis motor torque | 3.2N.m |
T-slot size | 12mm |
NO. Of T- on table | 3 |
Position accuracy | 0.02mm |
spindle taper | MT3 |
Range of spindle speed | 50-3000rmp |
Motor power | 750 / 1100W |
Packing size | 1000*900*1700mm |
Net weight | 280KG |
Gross weight | 320KG |
