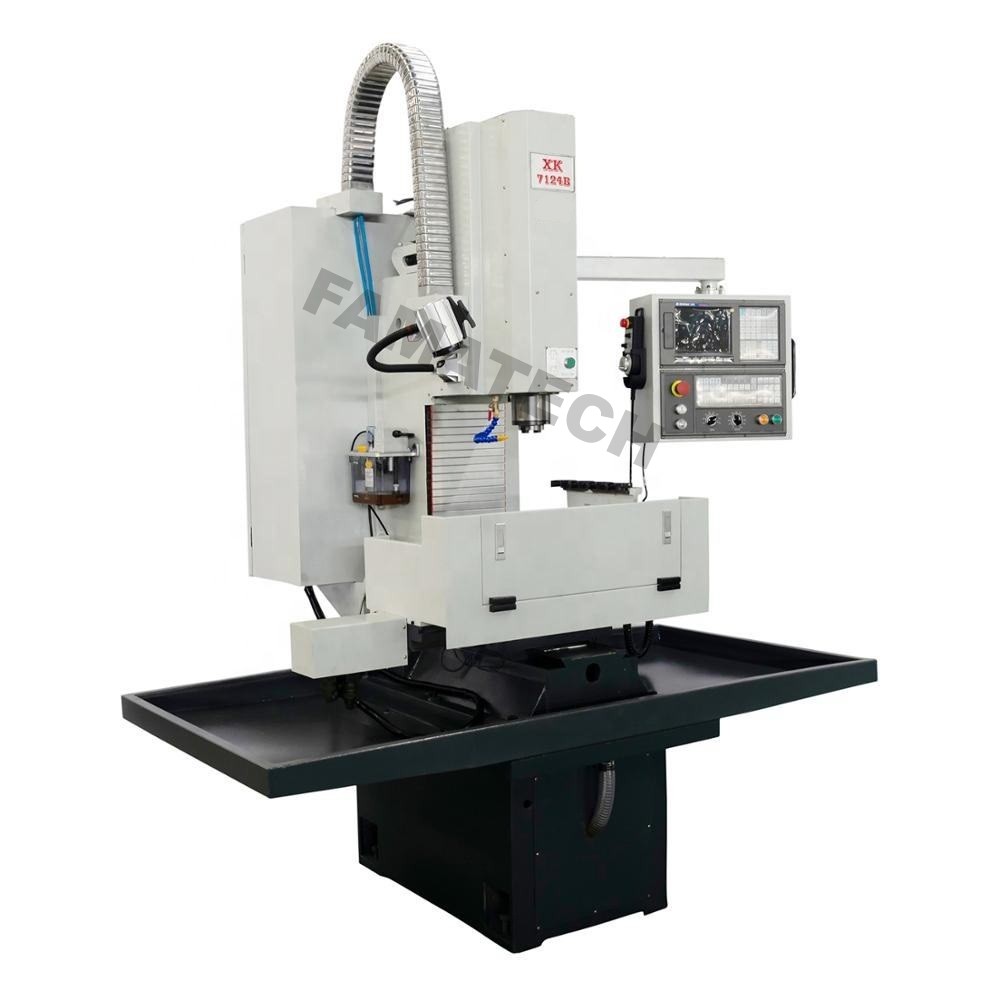

6000rpm BT30 Benchtop CNC Milling Machine XK7124B with 4th axis
The XK7124/XK7124A CNC milling machine is designed for high-precision machining of copper, iron, aluminum, and stainless steel workpieces . It supports drilling, tapping, milling, and engraving with a spindle speed range of 100~6000rpm and positioning accuracy of ±0.001mm. Equipped with patented anti-deformation technology, it ensures efficient stainless steel processing. The compact design allows one operator to manage multiple machines, improving output efficiency. Certified by CE, it complies with EU safety standards, ensuring market access for buyers.
Features

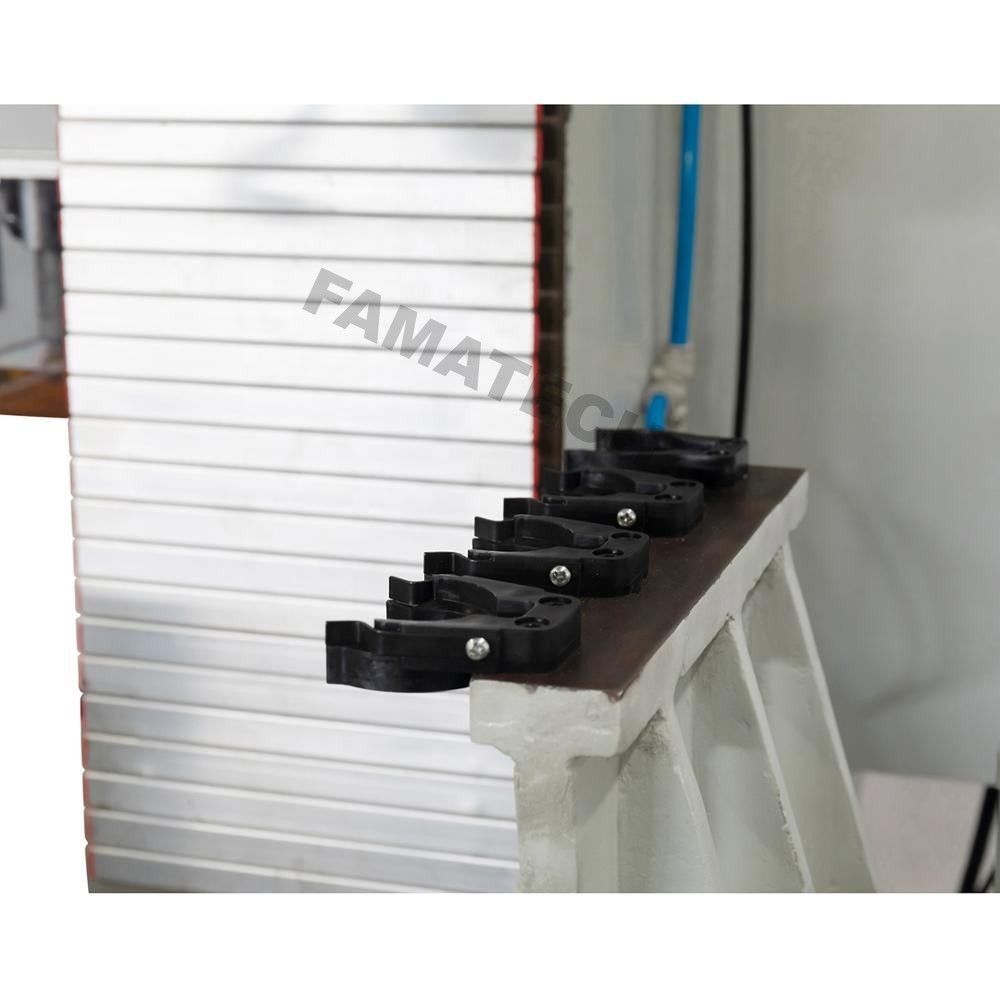

4 Pcs Tool stations on worktable with high efficiency.It can finish all process of surface machining, holemachining and tapping by clamping workpiece.High and low step speeds available and strongertorque for low step speed.
3 axis transmission by precision ball leadscrew, servomotor driven.
Two styles of tool change available, manuallyane-pneumatically.

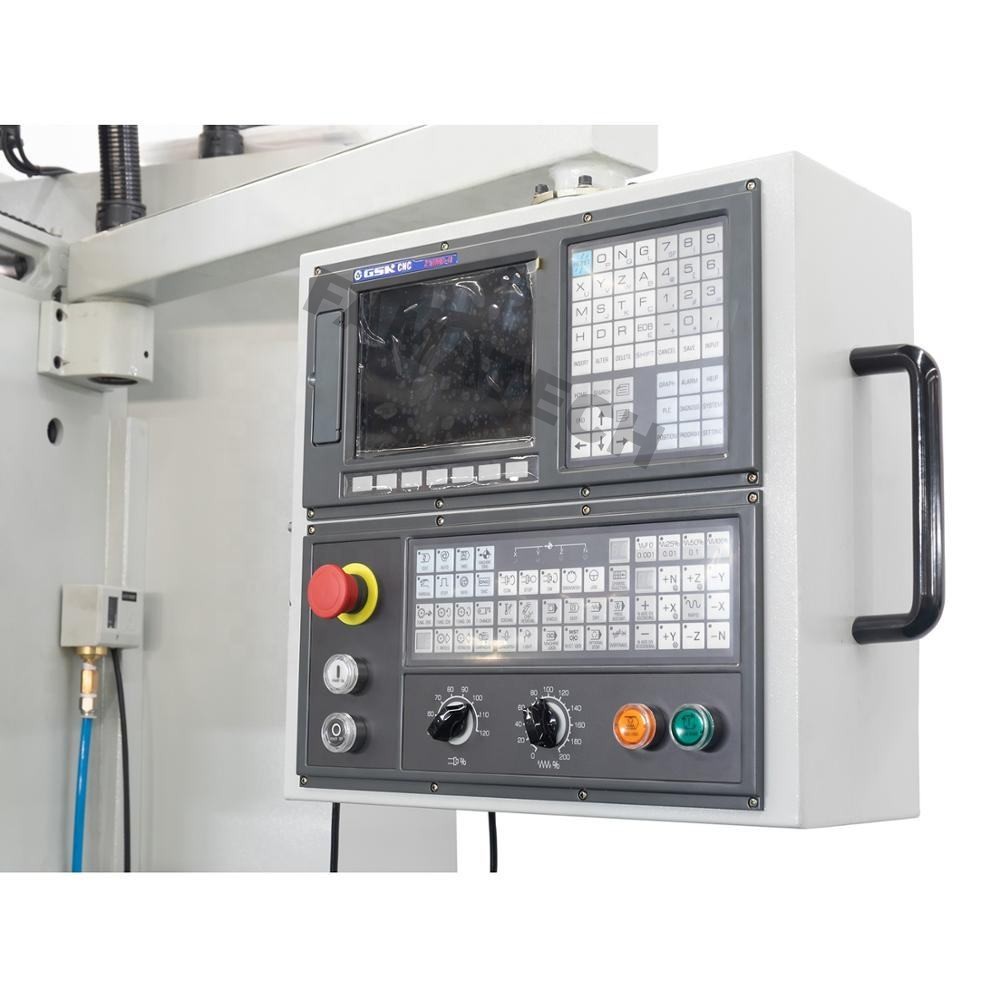

Various famous CNC controllers supplied with formore choice.
Machine stand and machine body are designedseparately for easy and flexible installment by user.
MACHINE | XK7124B |

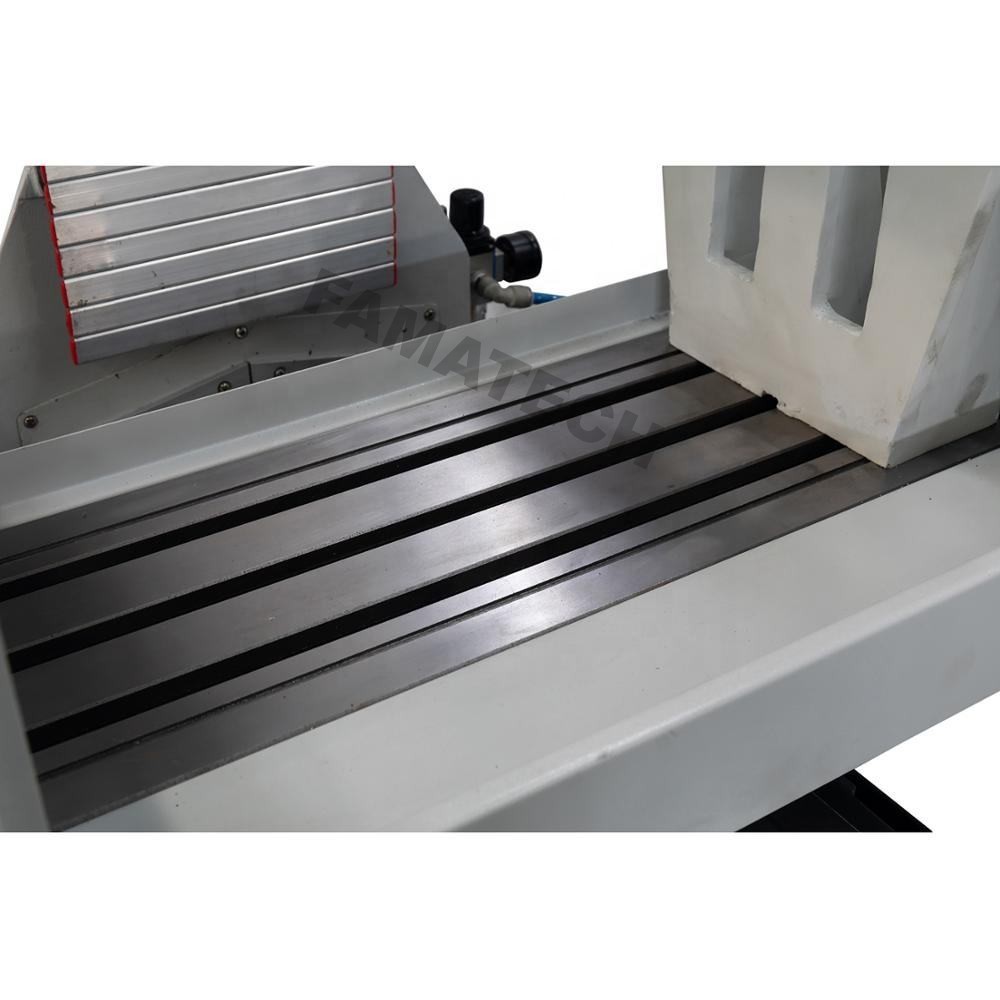

Size of worktable(length × width) | 800mm× 240mm |
T slot (width x qty x spaces) | 16mm× 3× 60mm |
Max loading weight on worktable | 60Kg |
X / Y / Z-Axis travel | 430mm / 280mm / 400mm |
Distance between spindle nose and table | 50-450mm 50-550mm |
Distance between spindle center and column | 297mm |
Spindle taper | BT30 |
Max. spindle speed | 100-6000 r/min |
Spindle motor power | 2.2/3.7Kw |
Feeding Motor power: X Axis | 1Kw / 1Kw / 1.5Kw |
Rapid feeding speed: X, Y, Z axis | 6m/min |
Feeding speed | 0-2000mm/min |
Min. set unit | 0.01mm |
Max. size of tool | φ 60× 175mm |
Tool loosing and clamping way | Pneumatic |
N. W (include machine stand) | 1000Kg |
Packing size( L X W X H) | 1900x1620× 2480mm |
