3 Axis Cnc Milling Metal Cnc Milling Machine Vmc Machining Center XK7124/XK7124A
The XK7124/XK7124A CNC milling machine is designed for high-precision machining of copper, iron, aluminum, and stainless steel workpieces . It supports drilling, tapping, milling, and engraving with a spindle speed range of 200~2500rpm and positioning accuracy of ±0.001mm. Equipped with patented anti-deformation technology, it ensures efficient stainless steel processing. The compact design allows one operator to manage multiple machines, improving output efficiency. Certified by CE, it complies with EU safety standards, ensuring market access for buyers.

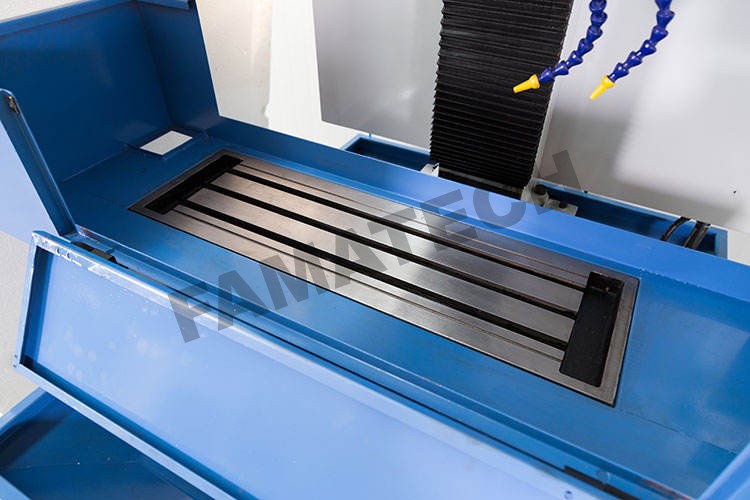

WORKTABLE | CNC MILLING MACHINE | XK7124/XK7124A |
Worktable size | 800*240mm(Optioanl :900*240) |
T slot (width x qty x spaces ) | 16mm*3*60 |
Max. loading of worktable | 60Kg |
TRAVEL | X / Y / Z Axis travel | 430mm / 280mm / 400mm |

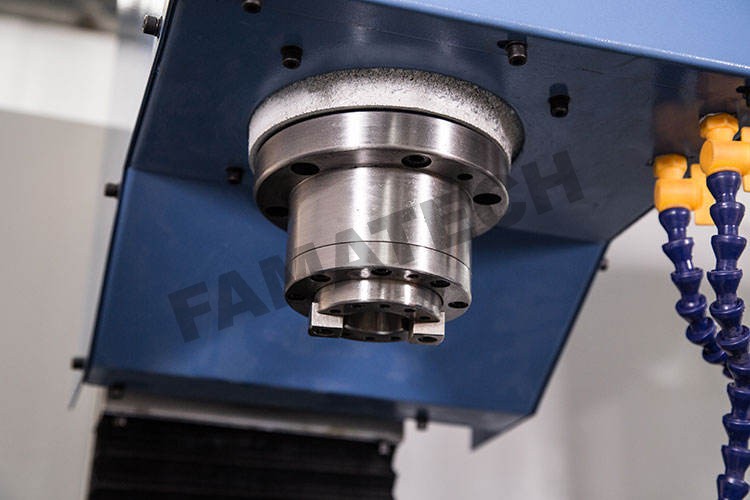

SPINDLE | Distance between spindle nose and table | 60-460mm |
Distance between spindle center and column | 297mm |
Spindle speed | 100-2500rpm |
Spindle taper | BT30 |
| Tool clamping way | Manual/Pneumatic |
| ATC capacity(optional) | No |
FEEDING | Feeding speed | 0-2000mm/min |
Rapid feeding speed:X,Y,Z axis | 6mm/min |
ACCURACY | Positioning accuracy | ± 0.04mm |
Repeatability accuracy | ± 0.02mm |
Min. set unit | 0.01mm |
MOTOR | Main motor power | 1.6KW(A/C motor) |
Feeding motor power :X,Y,Z axis | 1/1/1kw |
TOOLS | Max.size of tools | 60*175mm |
Max.loading weight of tools | 3.5kg |
OTHERS | N.W(include machine stand ) | 900kg |
Overall sizse(L*W*H) | 1640*1205*1950mm |
Packing size(L*W*H) | 1900*1620*2480mm |
