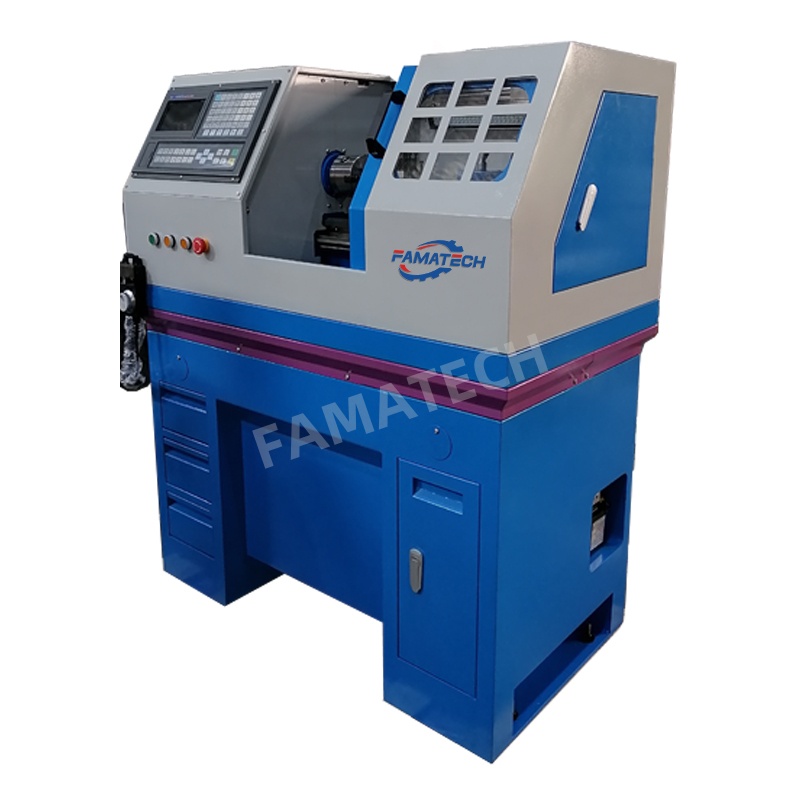

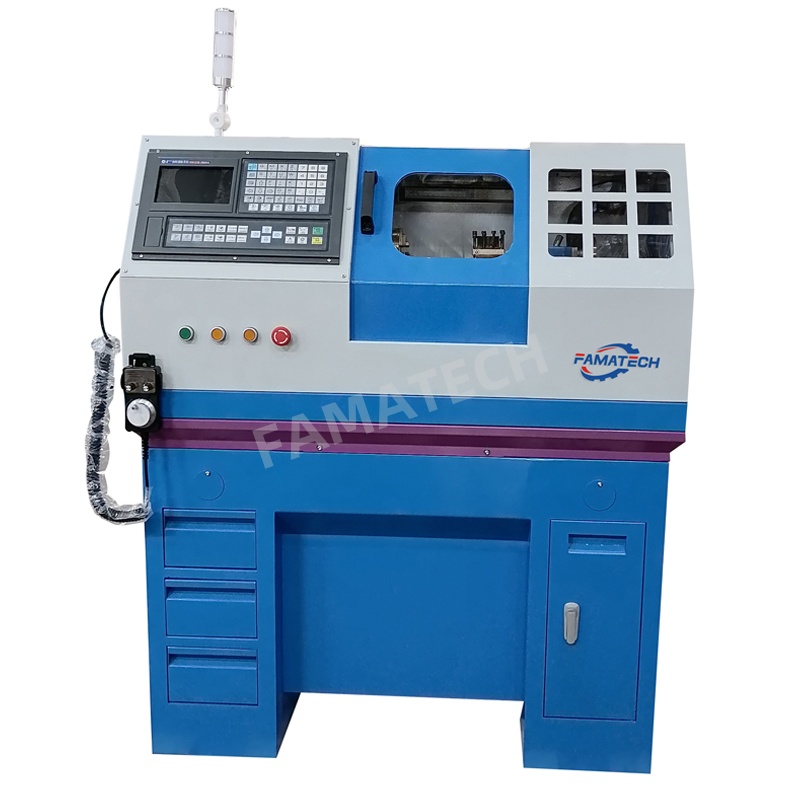

Most Popular Benchtop GSK/MACH system Mini Education CNC Lathe Machine torno
FAMATECH CNC LATHE is with high quality ,high precision and reasonable price , cnc lathe could do various jobs during their metalworking.the function include turning end face, taper or screws, spherical, external & internal cylindrical surfaces, and multi tool turning missions.
1. Standard 2 axis cnc lathe machine, 3rd axis is optional
2. Bed of lathe is made of heavy duty castings

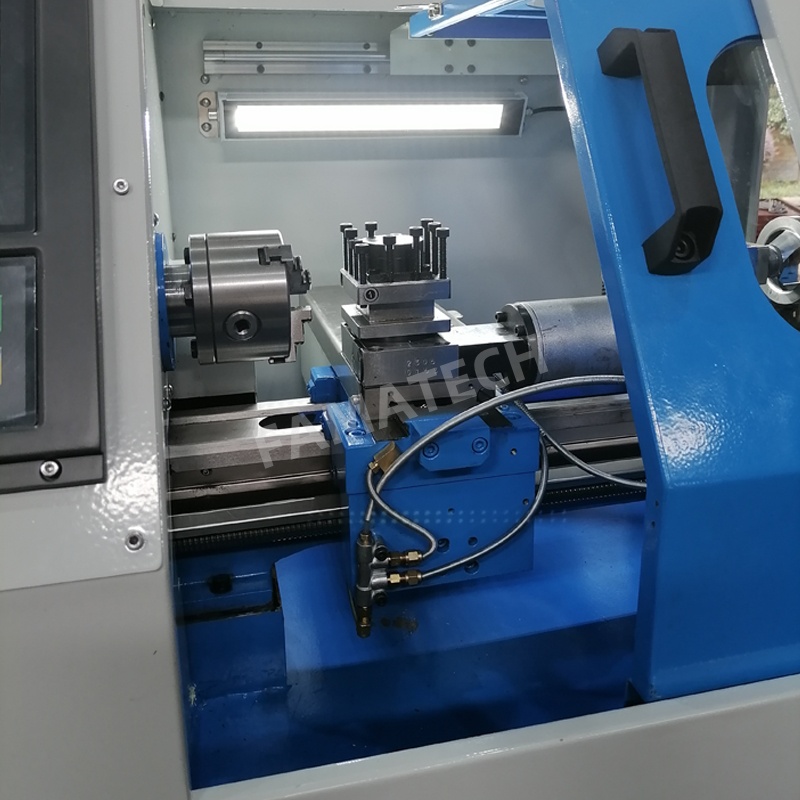

3. Standard is 4 station tool turret,
4. Induction hardened bed way
5. GSK control/Siemens control/ Fanuc control is available
6. Lathe up to CE certificate
7. Customer’s brand/color/voltage are customized for customer
Model | FC210 |
Swing over bed | 210mm |
Distance between centers | 400mm |
Spindle bore | 26mm |
Spindle taper | MT4/5C |
Spindle speed | 50-2500rpm |
Tool post | 4-position ordinary tool carrier |
X-axis stroke | 80mm |
Z-axis travel | 300mm |
X-axis fast moving speed | 2000mm/min |
Z-axis fast moving speed | 2000mm/min |
Spindle motor power | 0.75kw |
X-axis motor torque | 3N.m( stepping motor) |
Z-axis motor torque | 3N.m( stepping motor) |
Motor | 600W/1.1KW |
Minimum setting unit | 0.001mm |
Repetitive positioning accuracy | 0.01mm |
Repetitive positioning accuracy | 0.02mm |
Accuracy level of screw rod | P3 |
Tail socket diameter | 22mm |
Short stroke of tail seat cover | 50mm |
Tailstock sleeve taper | MT2 |
Overall Weight
| 210/250kg |
