Shanghai FAMATECH INDUSGTRIAL CO.,Ltd

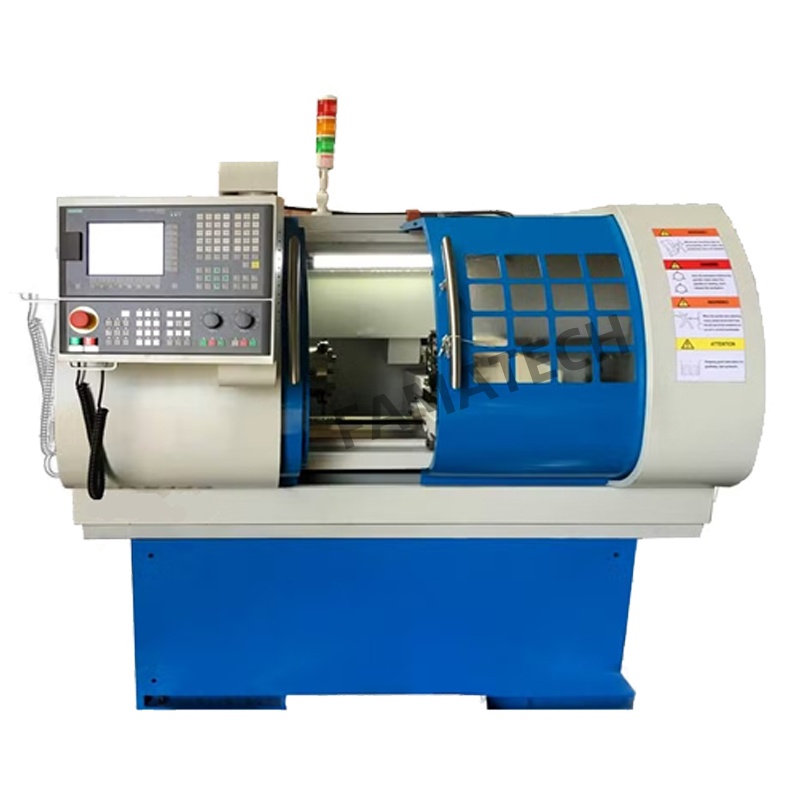

FAMATECH CNC LATHE is with high quality ,high precision and reasonable price , cnc lathe could do various jobs during their metalworking.the function include turning end face, taper or screws, spherical, external & internal cylindrical surfaces, and multi tool turning missions.
1.Standard 2 axis cnc lathe machine, 3rd axis is optional
2.Bed of lathe is made of heavy duty castings

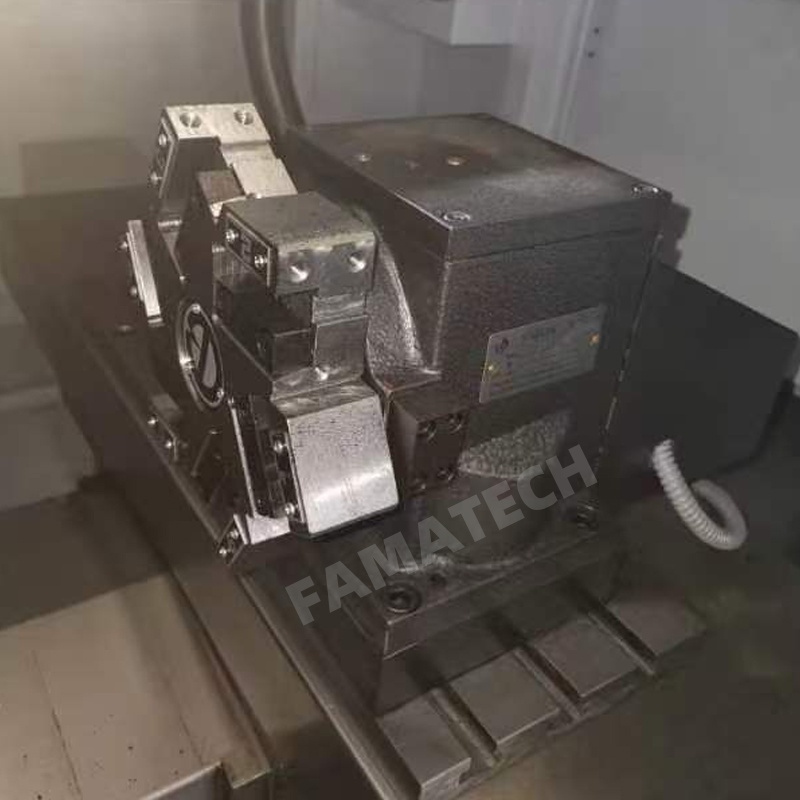

3.Standard is 4 station tool turret, 6/8 station tool turret are optional
4. Induction hardened bed way

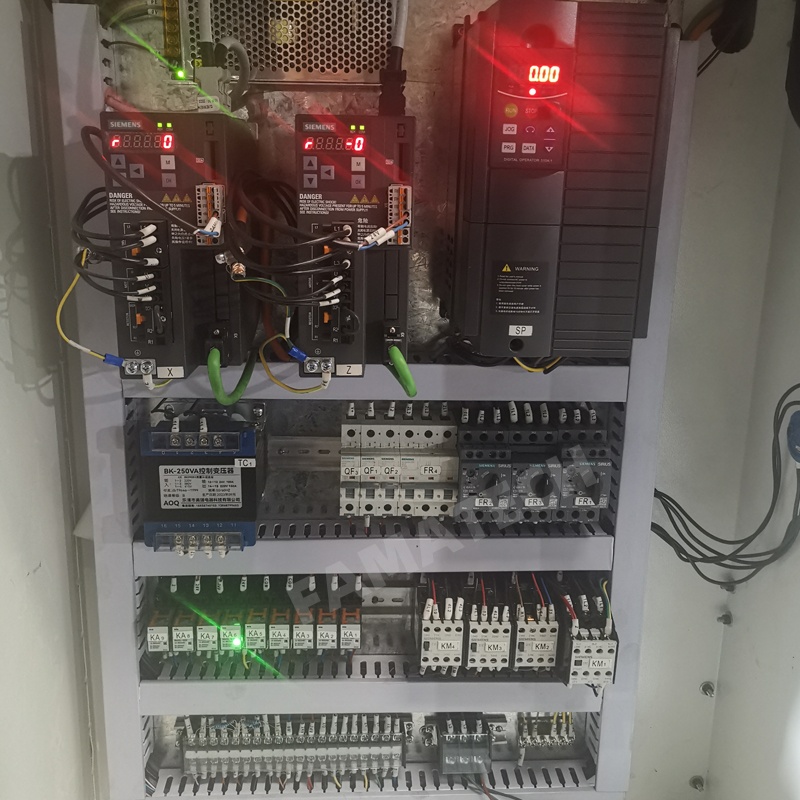

5.GSK control/Siemens control/ Fanuc control is available
6.Lathe up to CE certificate
7.Safety door is available

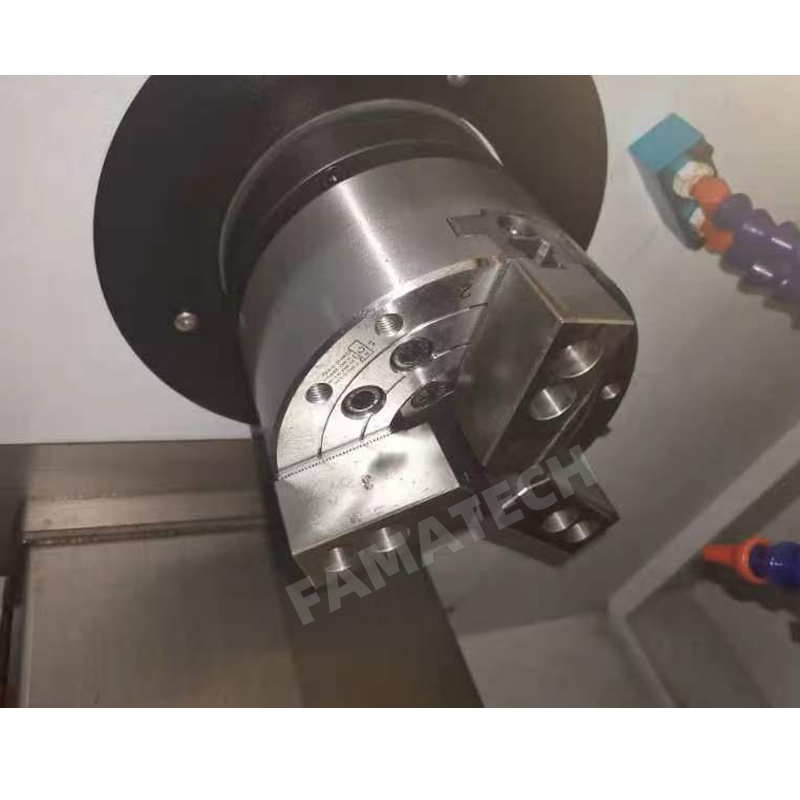

8. Pneumatic or hydraulic chuck and tailstock are available is available.
9.Servo turret and hydraulic turret are available.
10.Customer’s brand/color/voltage are customized for customer
Model | FC320 |
Swing over Bed | 360 mm |
Swing over Carriage | 150 mm |
Rail width | 206mm |
Spindle nose | A2-5 |
Spindle Taper | MT5 |
Spindle Bore | 40 mm |
Spindle Speed | 150 - 2,500 rpm |
Max. length of workpiece | 500/750/1000 mm |
X-axis travel | 180mm |
Z-axis travel | 500/750/1000 mm |
X-axis rapid traverse | 6m/min |
Z-axis rapid traverse | 8m/min |
Chuck diameter | Ø160mm |
Tool station number | 4/6 or tool array |
Max. section of tool | 20x20 or 16x16 |
External diameter of tailstock sleeve | Ø32mm |
Tailstock sleeve taper | MT3 |
Tailstock sleeve travel | 100 mm |
Coolant pump motor power | 120W |
Main motor Power | 2.2KW |
Packing Size (LxWxH) | 1805/2120/2324 x 1315 x 1930 mm |
Net Weight | 800/900/1050 Kg |
Gross Weight | 950/1100/1300 Kg |
