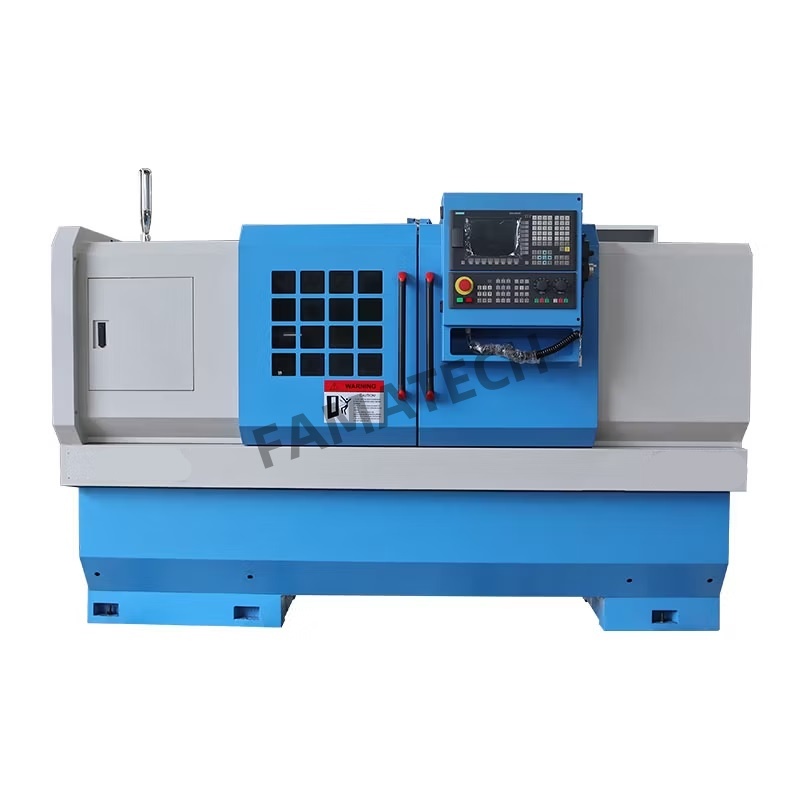

FAMATECH CNC LATHE FC360 FC400 cnc lathe machine with Siemens 828D/GSK/FANU Control System for sale
FAMATECH CNC LATHE is with high quality ,high precision and reasonable price , cnc lathe could do various jobs during their metalworking.the function include turning end face, taper or screws, spherical, external & internal cylindrical surfaces, and multi tool turning missions.
1.Standard 2 axis cnc lathe machine, 3rd axis is optional
2.Bed of lathe is made of heavy duty castings

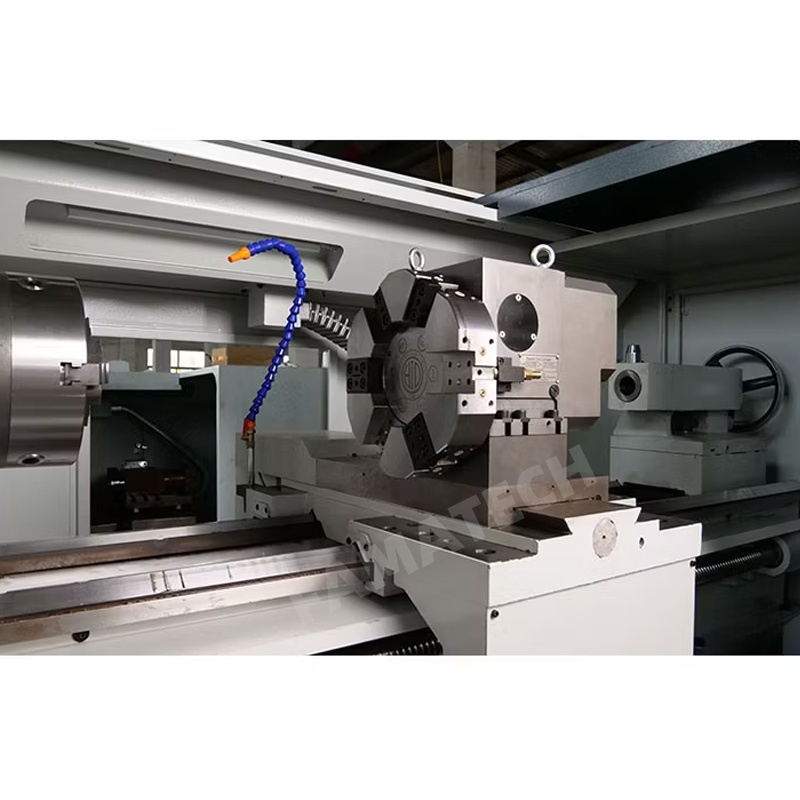

3.Standard is 4 station tool turret, 6/8/12 station tool turret are optional
4. Induction hardened bed way

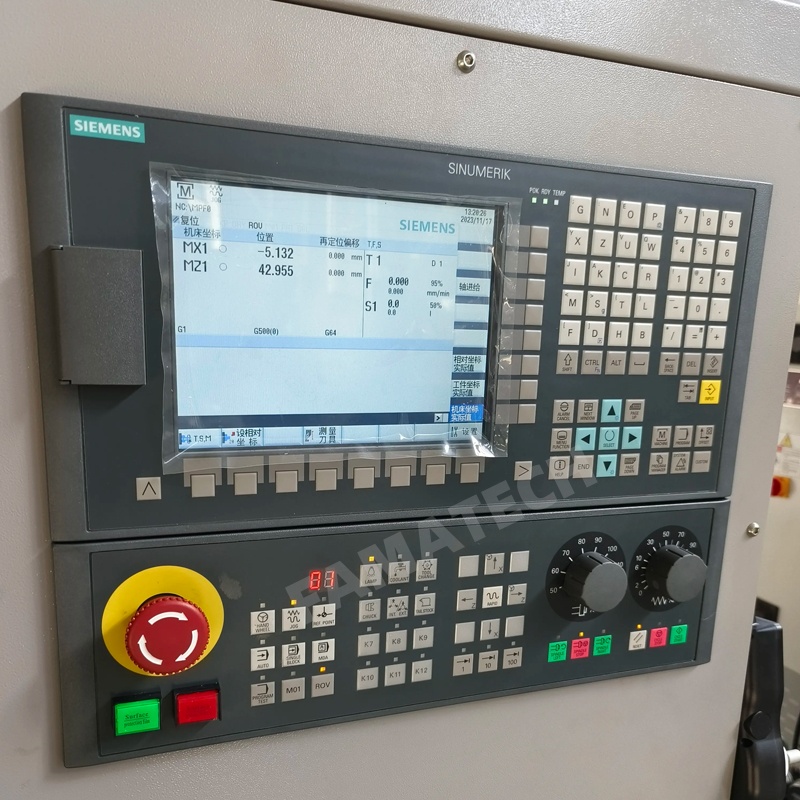

5.GSK control/Siemens control/ Fanuc control is available
6.Lathe up to CE certificate
7.Safety door is available
8. Pneumatic or hydraulic chuck and tailstock are available is available.

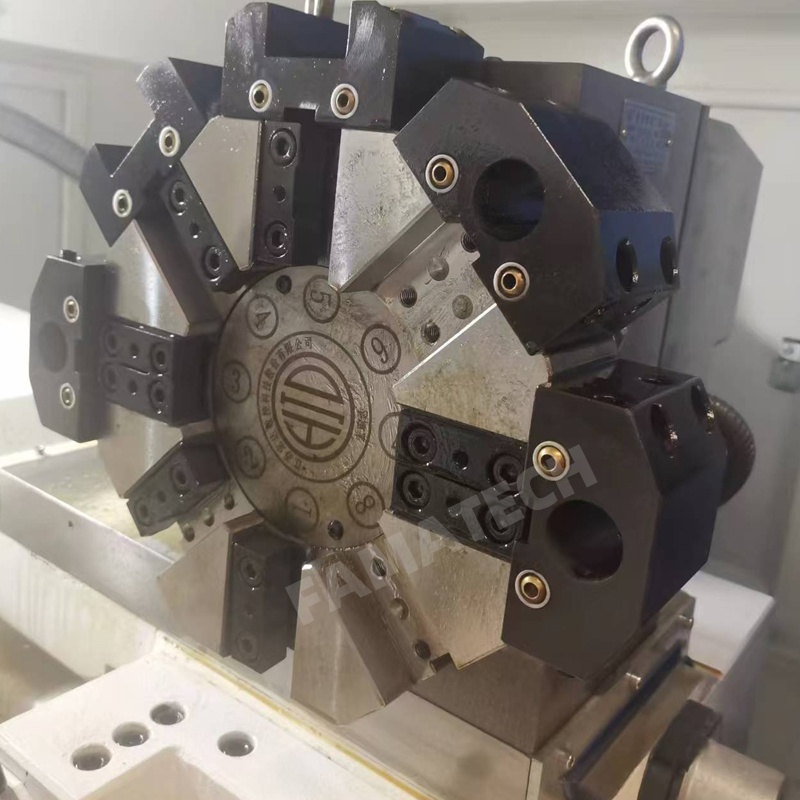

9.Servo turret and hydraulic turret are available.
10.Customer’s brand/color/voltage are customized for customer
Model | FC360 | FC400 |
Swing over Carriage | 360mm | 400 mm |
Swing over Carriage | 190 | 220 |
Rail width | 330mm | |
Spindle nose | A2-6 | |
Spindle Taper | MT6 | |
Spindle Bore | 60 mm | |
Spindle Speed | 150 - 2,500 rpm | |
Distance Between Centers | 750/1000/1500 mm | |
X- travel | 250mm | |
Size of 3-jaw chuck | Ø200/250mm(optional) | |
Stations of tool carrier | 4/6/8/10/12 | |
Min. setting unit of motor (X)cross | 0.001mm | |
Min. setting unit of motor (Z)cross | 0.001mm | |
Moving speed of (X)cross | 4m/min | |
Moving speed of (Z)cross | 6m/min | |
Max. size of tool post | 20/25mm | |

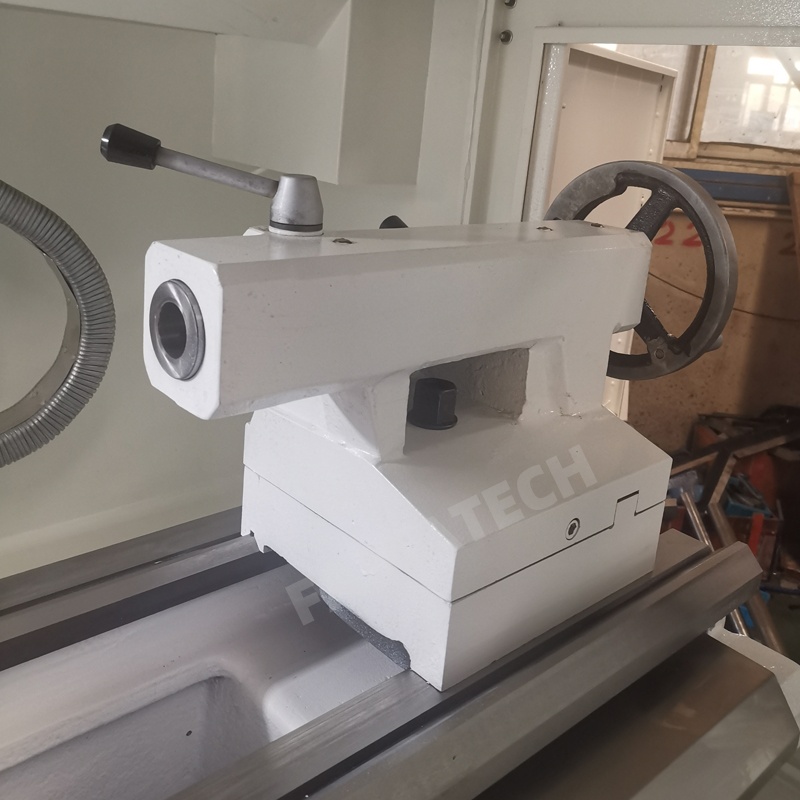

Tailstock sleeve dia. | Ø55mm | |
Tailstock sleeve taper | MT4 | |
Tailstock sleeve travel | 120 mm | |
Coolant motor power | 120W | |
Motor Power | 5.5 KW | |
Packing Size (LxWxH) | 2300 x 1550 x 1950 mm | |
