HQ500 Combo Lathe milling Machine with 500 mm Centers Distance for Hobby User


Swing Over Bed :420mm

Distance Between Centers:500mm

Spindle bore: 28mm


  • Product Detail
  • Accessories

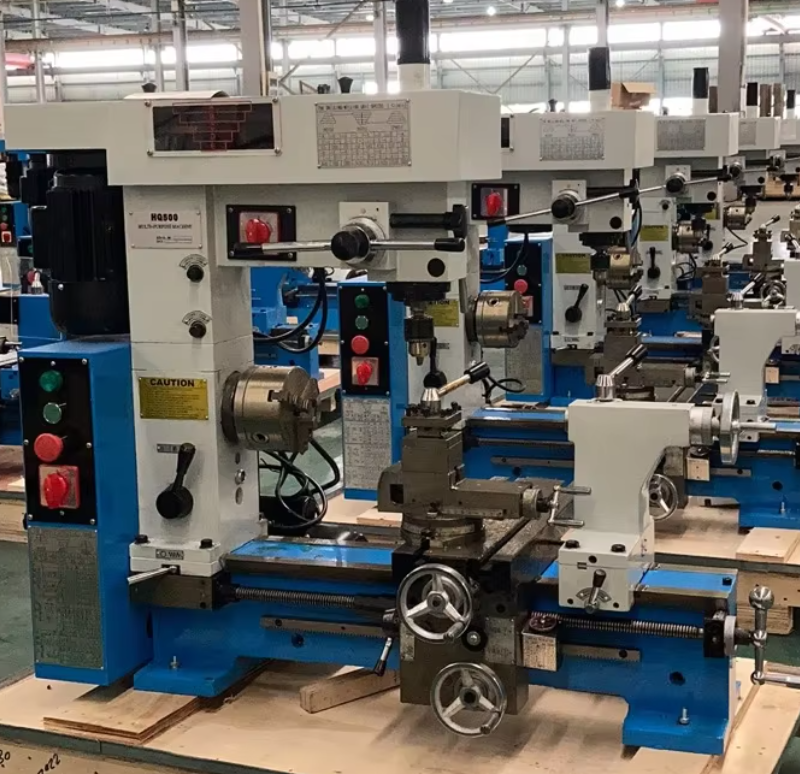

HQ500 Combo Lathe milling Machine with 500 mm Centers Distance for Hobby User


The HQ500 Combo Lathe Machine offers versatile functionality with turning, milling, drilling, and threading capabilities, suitable for metal and wood processing. It features a 500mm distance between centers, a max longitudinal travel of 400mm, and a spindle speed range of 120-3000 rpm. Ideal for hobby users, it provides excellent value with its compact design, multiple functions, and wide application in job-shops, technical schools, and households. The machine also supports metric and imperial thread cutting and includes automatic feeding options for precision work.


Features

● A kind of combination machines with turning, miling, drilling and threading.

● Metric or imperical thread cutting

● Suitable for processing metal, wood and other materials.

● Exceilent advantage of various functions, small occupation and economlization.

● Widely used in job-shops,car-shops technical school,factories and family for machine parts repairing and making, education training, household utensil


Swing Over Bed

420mm

Distance Between Centers

500mm

Max. Longitudinal Travel

400mm

Max. Cross Travel

195mm

Taper Of Spindle

MT4

Spindle Bore

28mm

Step Of Spindle Speed

7

Range Of Spindle Speed

160-1360rpm

Barrel Travel

70mm

Barrel Taper

MT3

Metric Thread Range

0.2-6mm

nch Thread Range

4-120 T.P.I

Longitudinal Range Of Automatic Feeding:

0.05-0.35mm (0.002 "-0.014 ")

cross range of automatic feeding

0.05-0.35mm (0.002 "-0.014 ")

Max Driiling Capacity

∅22mm

Worktable Size(L×W)

475×160mm

Max. End Milling Capacity

∅28mm

Max. Face Mill Capacity

∅80mm

Distance Between Spindle Center And Column

285mm

Distance Between Spindle And Worktable

306mm

Headstock Travel Of Up And Down

110mm

Spindle Taper

MT3

Step Of Spindle Speed

16

Range Of Spindle Speed

120-3000 rpm

Swivel Angel Of Headstock

±360º

Motor Power

550W

Packing Size

1130×580×1100mm

N.W/G.W

245kgs/280kgs
