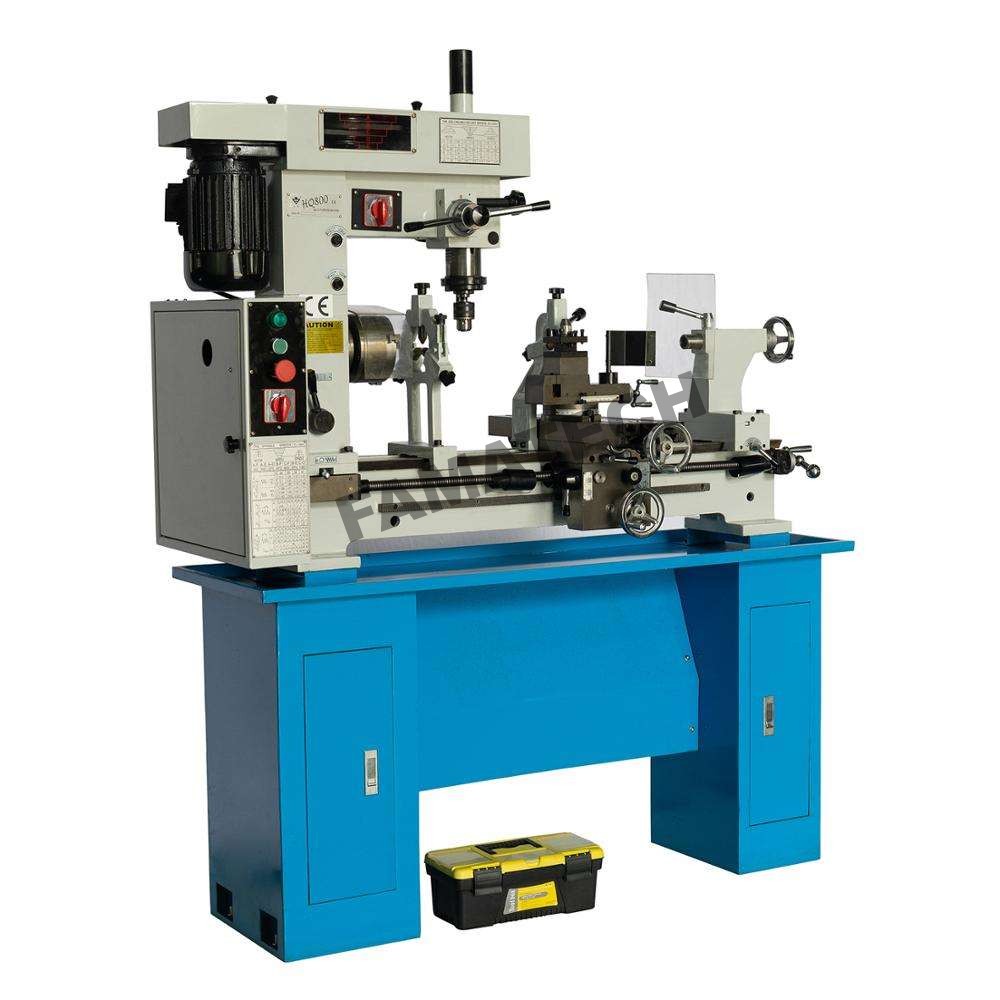

HQ800 Combination Lathe Mill Drilling Machine/multi-purpose machine

1. Very practical machine with leadscrew for turning / milling / drilling of parts

2. Easy tooling change-over from turning to drilling / milling

3. Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments

4. Precision bearings ensure high spindle concentricity

5. Milling unit with swivel

Swing over bed	φ420mm
Distance between centers	φ800mm
Max.longitudinal travel	700mm
Max.cross travel	195mm
Taper of spindle	M.T.4
Spindle hole	φ28mm
Step of spindle speed	7
Range of spindle speed	160~1360r.p.m
Metric thread range	0.6~6mm
Inch thread range	4~120T.P.J
Max.drilling capacity	φ22mm
Worktable size(L*W)	475*160mm
Max.end mill	φ28mm
Max.face mill	φ80mm
Distance between spindle center and column	285mm
Distance between spindle and worktable	306mm
Headstock travel of up and down	110mm
Spindle taper	M.T.3
Step of spindle speed	16
Rangle of spindle speed	120~3000r.p.m
Swivel degree of headstock	±360°
Motor power	0.55kw
Packing size	14305801100mm
N.weigh/G.weigh	275kgs/325kgs
