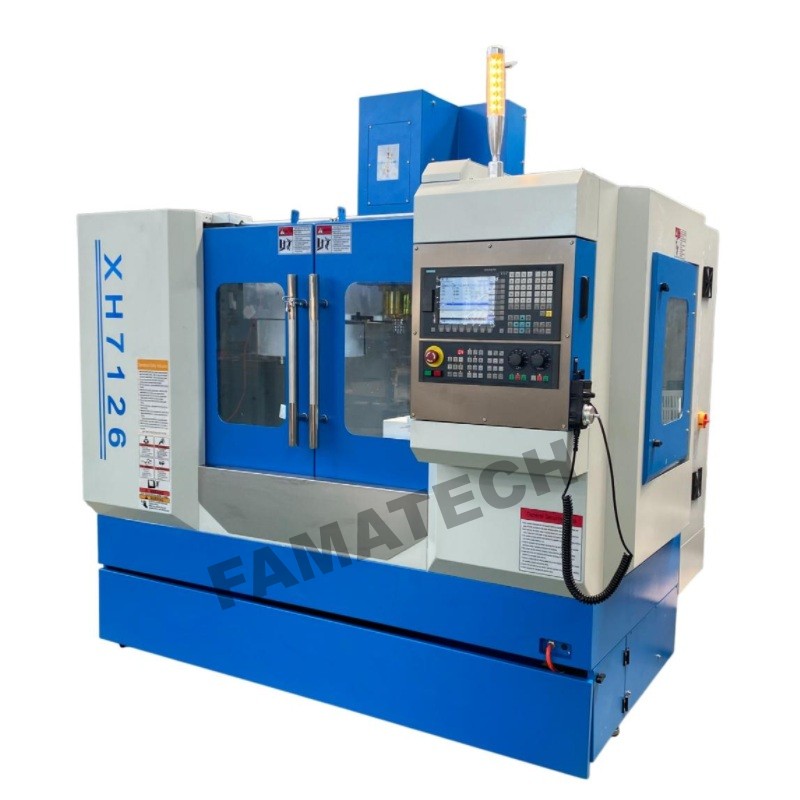

Mini XH7126 Vertical CNC Milling Machine 3-Axis Automatic Machining Center GSK/Siemens/Fanuc Control System BT40 Spindle Direct China Factory

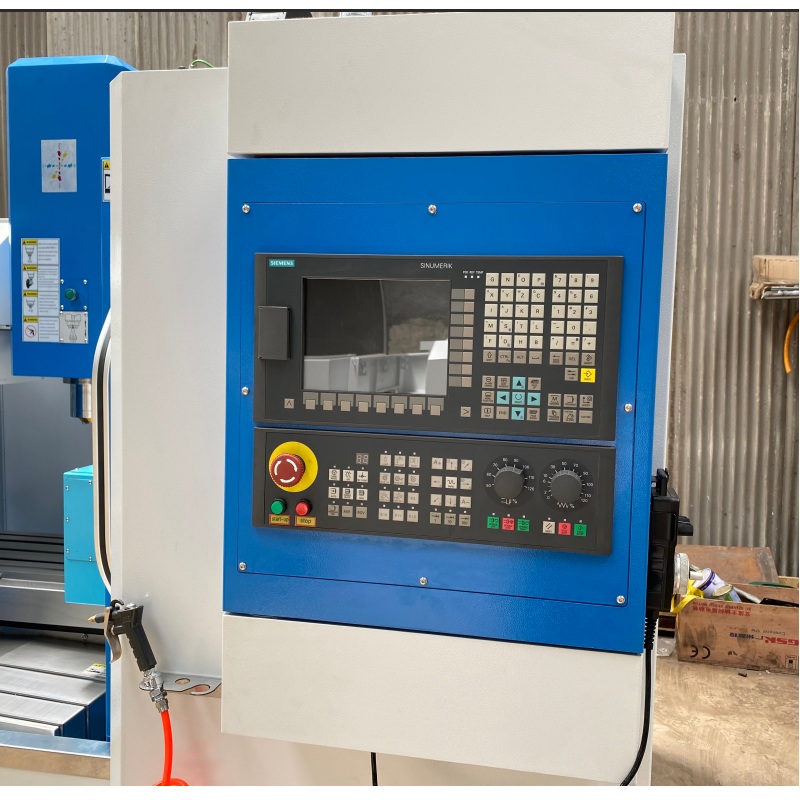

As one new product of independent design & development, XH7126 is a multi-purpose machine which could mill surface & drill holes.This machine adopts domestic/overseas branded numerical control system (GSK/Siemens/Fanuc) and realizes full-screen edition in Chinese. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
Model | XH7126 |
Main Motor Power KW | 3.7KW |

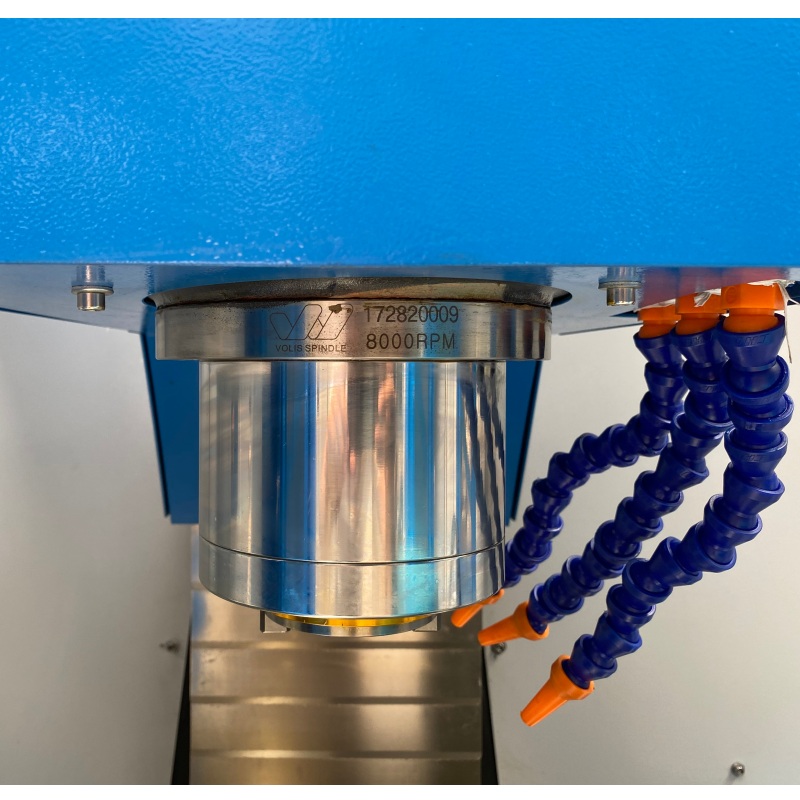

Spindle Max. Rotating Speed | Servo Spindle 8000rpm |
Z Motor Torque | 7.7N.m |
X Motor Torque | 6N.m |
Y Motor Torque | 6N.m |
Spindle Taper | BT40 |

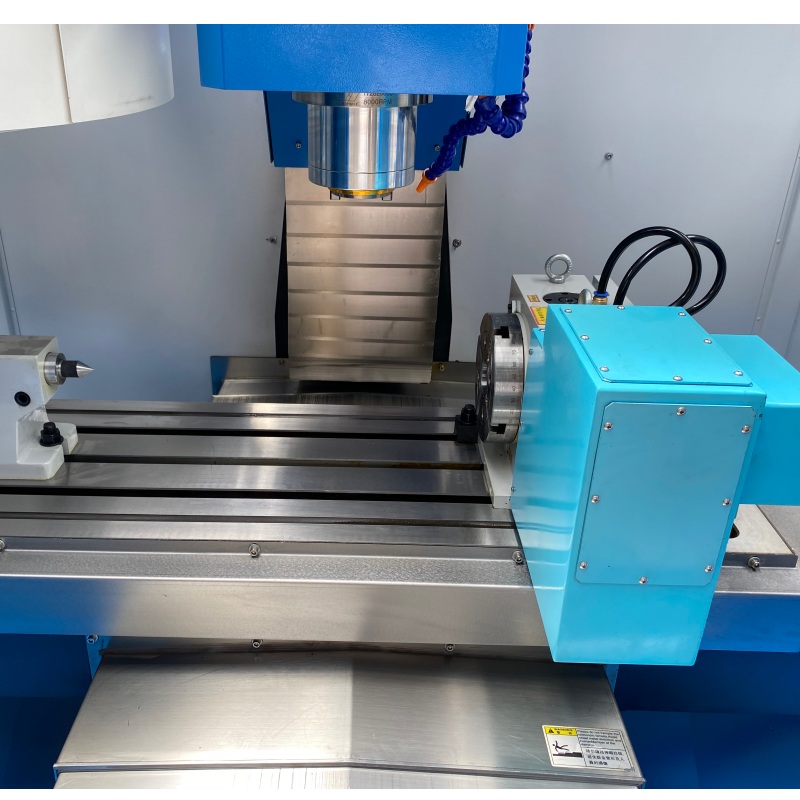

Worktable Size | 800X260mm |
Travel（Longitudinal X/Horizontal Y/Vertical Z） | 450X320X450mm |
Distance of Spindle Axis to Guideway Plane | 360mm |
Distance of Spindle End to Worktable | 90-510mm |
The Vertical Permissible Error of Spindle Axis to Worktable Plane | ≤0.02mm |
Positioning Accuracy | 0.02mm |
Repeated Positioning Accuracy | 0.01mm |
Machine Overall Dimension (L*W*H) | 2600*1950*2400 mm |
Machine Net Weight KG | 2400 |

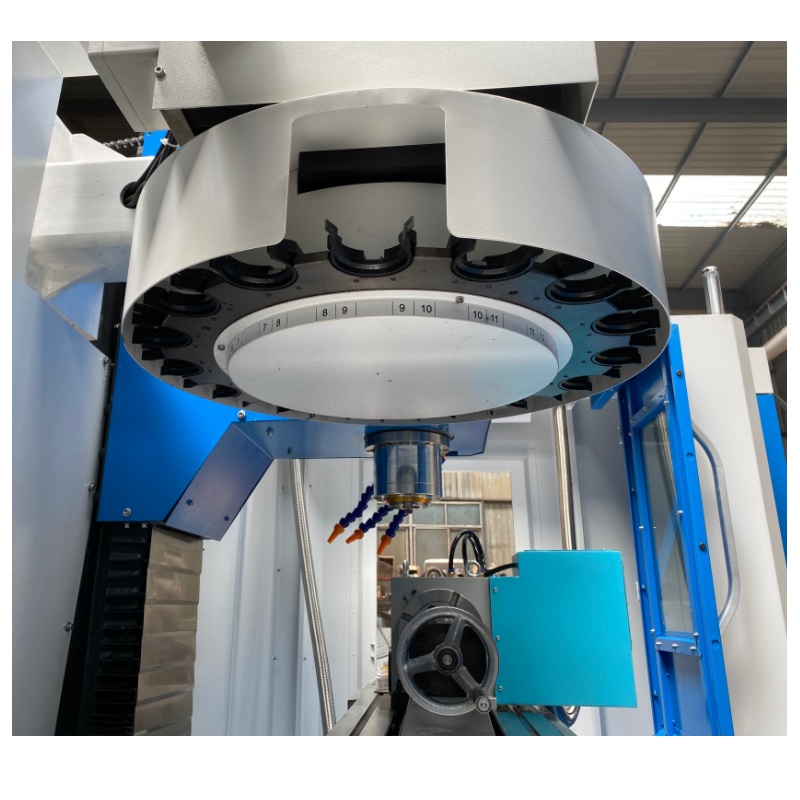

Magazine Capacity | 10/12 (Bamboo Type) |
