Mini 3 aixs 4th Axis CNC Milling Machine VMC600 CNC Milling 5 Axis Machining Center VMC 650 850

Structural characteristics
1. The main components such as base, column, workbench, middle slide seat and lifting slide seat are all cast of high-strength materials, which are treated by artificial aging to ensure the stability of the machine tool in long-term use and provide guarantee for the stability of the machine tool performance.

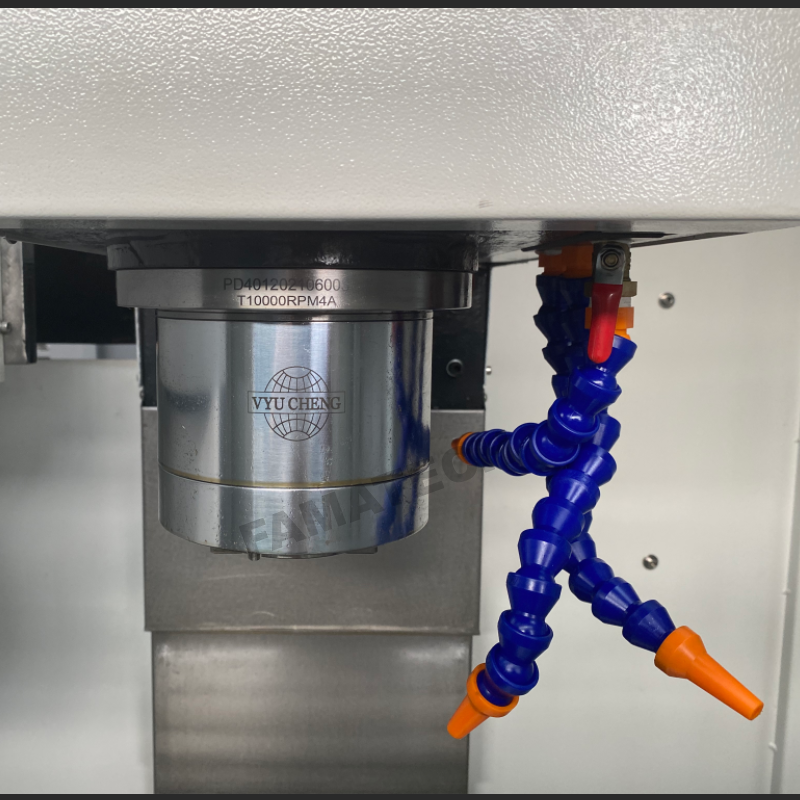

2. Adopt high-speed, high-precision and high-rigidity spindle with strong bearing capacity.

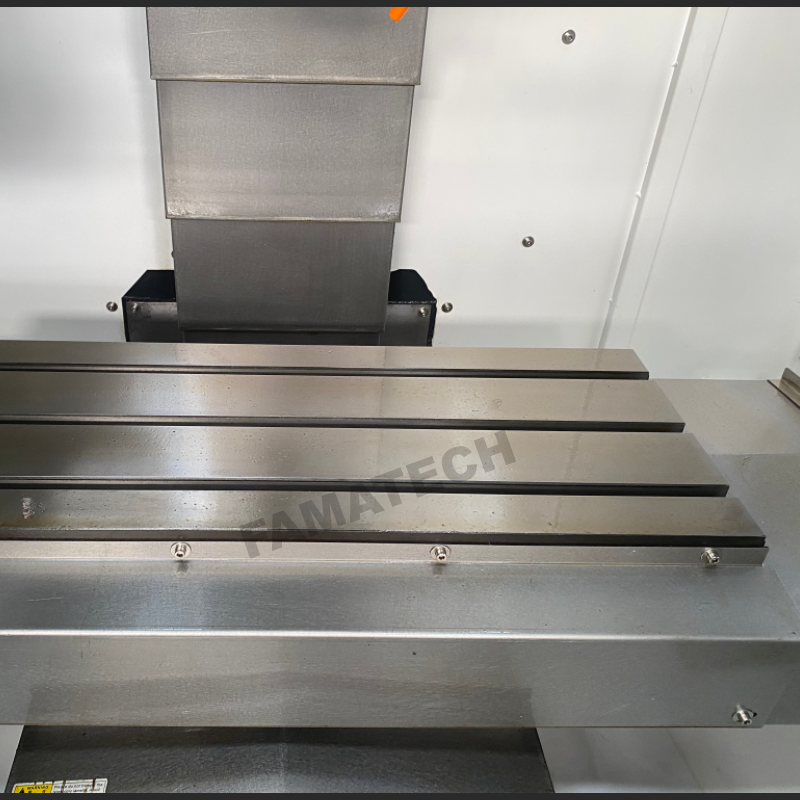

3. The X, Y and Z direction guide rails of the worktable are all hard rail guide rails, which are quenched by super audio frequency and precision grinding. The hard rail guide surface is precisely scraped and grinded, and pasted with composite PTFE material, combined with automatic forced lubrication, which reduces the friction resistance of feed movement, reduces low-speed crawling and improves the precision life of the machine tool.
4, X, Y, Z three-direction feed are high-precision, high-strength ball screw, servo motor drive, to ensure the positioning accuracy of the machine tool.
5. Protective devices are adopted for guide rails and ball screws to ensure the cleanliness of lead screws and guide rails and ensure the transmission and operation accuracy of machine tools.
6. In Z direction, the brake servo motor is increased to ensure the smooth and smooth lifting movement of the spindle.
7. The electric lubricating device can force lubricate the lead screws and guide rails in longitudinal, transverse and vertical directions, reduce the wear of the machine tool and ensure the efficient operation of the machine tool; At the same time, the cooling system changes the coolant flow rate by adjusting the nozzle to meet different processing requirements.
8. The operating system of the machine tool is suspended at the upper right of the machine tool through the support arm, which conforms to the principle of ergonomics. The operating box can rotate at a certain angle, which is convenient and reliable to operate.
