SHANGHAI FAMATECH CNC MACHINE TOOL CO., LTD.

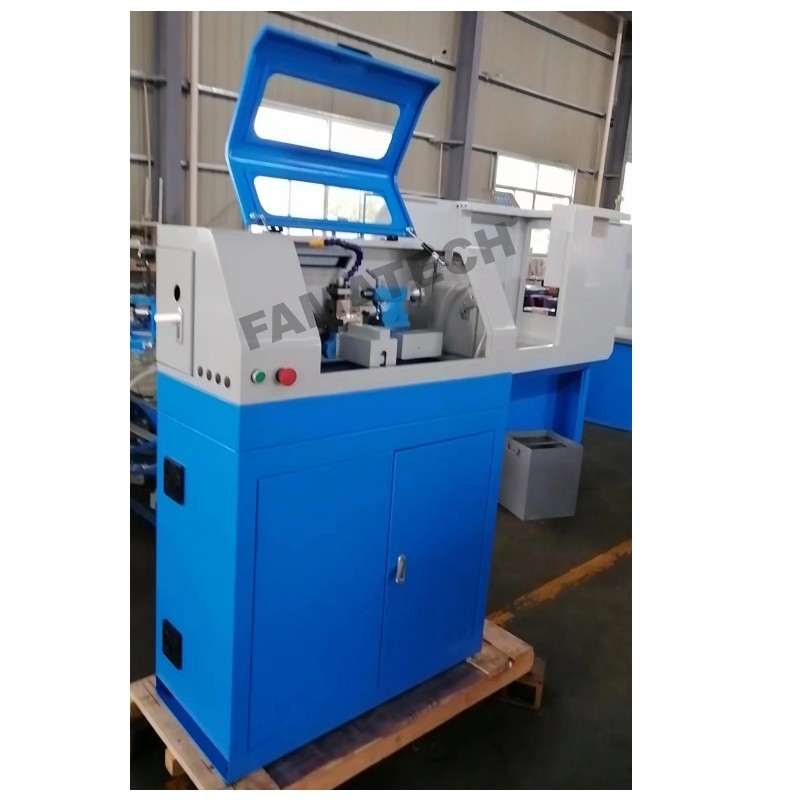

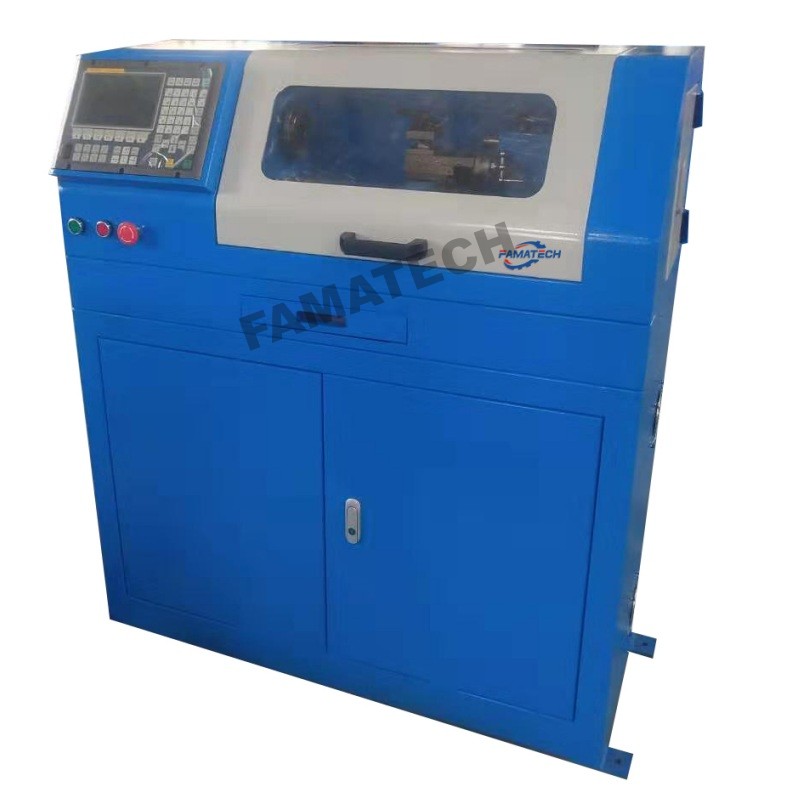

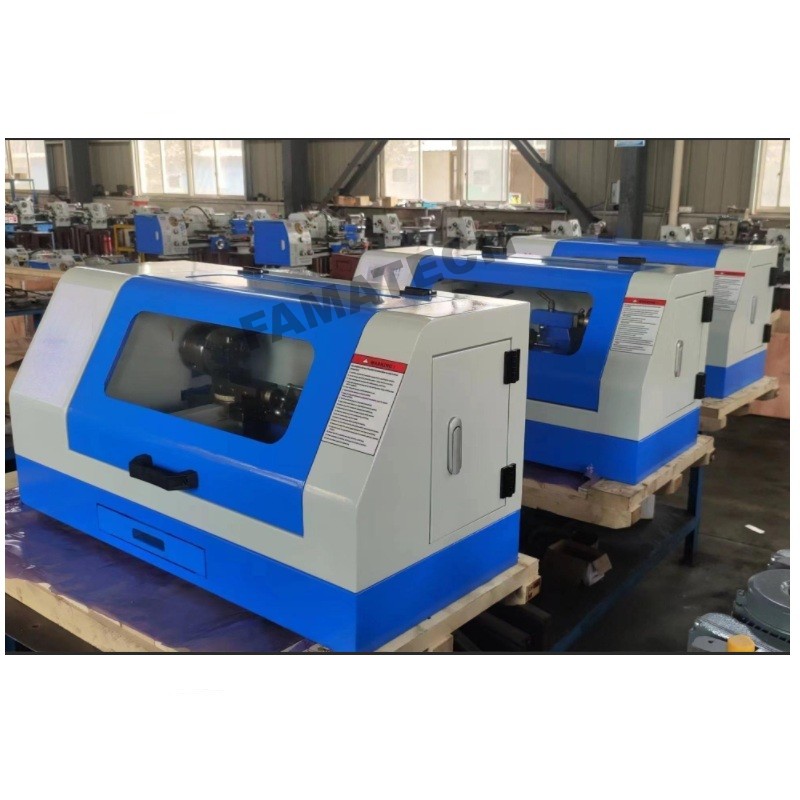

Mini desktop educational cnc lathe machine for sale torno cnc ck0618/FC180
Features:
* Windows software control Simple operation, easy-to-operate
* Most economical and widely used hobby cnc lathe V- way bed is precision ground
* Spindle is supported by precision tapered bearing.
*Headstock is constantly oiled during operating
* Power longitudinal feed allows threading.
* User-friendly drilling and milling cycles with graphic display
* LCD flat screen
Model No. | FC180 |
Swing over bed | 180mm |
Distance between centers | 300mm |
X-axis fast moving | 800mim/mm |
Z-axis fast moving | 1200min/mm |
Spindle taper | MT3 |
Spindle aperture | 20mm |
Spindle speed | 50-2250rpm |
X-axis torque | 1.5NM |
Z-axis torque | 2NM |
X-axis travel | 60mm |
Z-axis travel | 250mm |
Taper of tailstock | MT2 |
Travel of tailstock | 50mm |
N.W./G.W. | 90/100KG |
Machine dimension | 900×400×1250mm |
Packing | 1200×800×1500mm |
