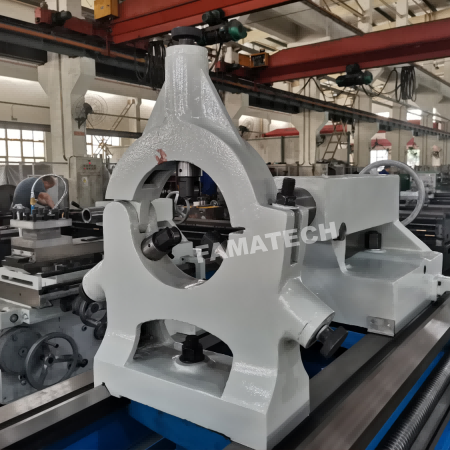

Max.swing over bed

mm

1280

1480

1680

1980

2080

Max.swing over cross slide

mnm

840

1040

1240

1540

1640

Distance between centers

mm

2000/3000/4000/5000/6000/7000/8000/10000/12000

Max.swing over gap

mm

1580

1780

1980

2280

2380

Valid length of gap

mm

600

Bed width

mm

1100

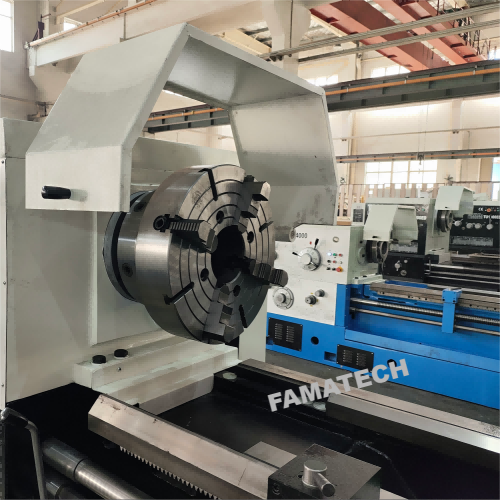

Spindle hole

mm

130mm

Spindle taper

mm

Metric 140#

Spindle speeds(Number)

3.15-315r/min. Or 2.5-250r/mm  kinds：forward 21kinds，reverse 21 kinds

Metric threads range(kinds)

44kinds 1-120mm

Inch threads rangs(Kinds)

      31 kinds 1/4-24t.p.i

Moudle threads range(kinds)

      45 kinds 0.5-60mm

Diametral threads range(kinds)

38 kinds  1/2-56DP

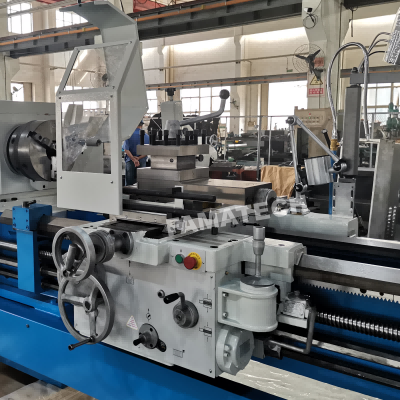

Longitudinal feeds range(kinds)

56 kinds 0.1-12mm

Cross feed range(kinds)

56 kinds 0.05-6mm

Rapid feed:Long./Cross

3400mm/min,1700mm/min

Cross slide travel

mm

780

Compound rest travel

mm

      280

Distance between center& tool

mm

48

Size of tool shank

mm

45*45

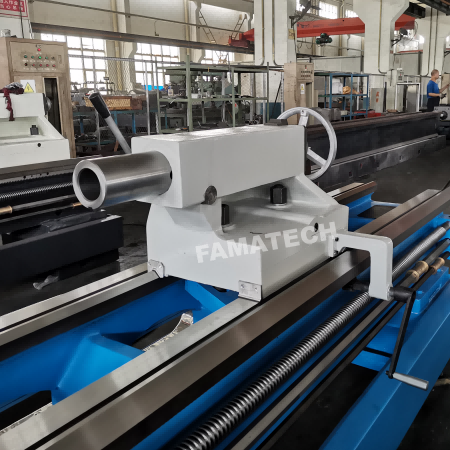

Sleeve diameter

mm

260   (install inner small spindle)

Sleeve taper

     Metric 80#

Sleeve travel

     mm

           300

Main drive motor

  kw

  30

Coolant pump power

  kw

         0.45

Rapid feed motor

kw

         1.5

Tail stock motor

  kw

         1.5

Net/Gross weight for 1500mm

kg

16800 /18300  / 20000 / 21500  / 23000  / 26000  / 29000  /32000
