Max.weight of workpiece

T

8

8

8

8

Max.swing over bed

mm

1000

1250

1400

1600

Max.swing over gap

mm

1300

1550

1700

1900

Valid length of gap

mm

450

Max.swing over cross slide

mm

620

870

1000

1200

Distance between centers

mm

1500/2000/3000/4000/5000/6000//8000/10000/12000

Bed width

mm

780

Spindle hole

mm

 130mm

Spindle taper

mm

Metric 140#

Spindle speeds(Number)

r/min

3.15-315 r/min. Or 2.5-250r/mm  kinds：forward 21kinds，reverse 21 kinds

Metric threads range(kinds)

44kinds 1-120mm

Inch threads rangs(Kinds)

      31 kinds 1/4-24t.p.i

Moudle threads range(kinds)

mm

      45 kinds 0.5-60mm

Diametral threads range(kinds)

38 kinds  1/2-56DP

Longitudinal feeds range(kinds)

mm

56 kinds 0.1-12 mm

Cross feed range(kinds)

   mm

56 kinds 0.05-6mm

Rapid feed:Long./Cross

mm/min

3400mm/min,1700mm/min

Cross slide travel

mm

650

Compound rest travel

mm

                                                                280

Size of tool shank

mm

45*45

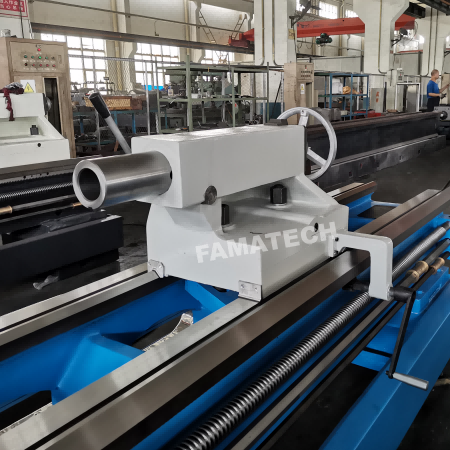

Sleeve diameter

mm

 160

Sleeve taper

                                                            Metric 80#

Sleeve  travel

mm

                                                                300

Main drive motor

KW

22

Coolant pump power

KW

0.15

Rapid feed motor

KW

   1.5

Net/Gross weight

kg

10000 /10800  /11600 /12400 /13200 /14000 /15600 /17200 / 18800
