FMZ1600/FMZ1800 FMZ2000/FMZ2400/FM2400/FMZ2500 Heavy duty metal lathe machine conventional horizontal lathe machine
Famatech brand new heavy duty manual lathe machines is widely used conventional lathe machine. Features or advantages of lathe machine are as below:
Used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread.Processing of precision parts, the sample processing and processing of the model can also be used.
After high frequency quenching process and precision grinding of high-quality cast iron bed.Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning
Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
Specification | Unit | FMZ1600 | FMZ1800 | FMZ2000 | FMZ2400 | FMZ2500 |
Max.swing over bed | mm | 1600 | 1800 | 2000 | 2400 | 2500 |
Max.swing over cross slide | mm | 1250 | 1450 | 1650 | 1900 | 2150 |
Distance between centers | mm | 3000/4000/5000/6000//8000/10000/12000/16000 | ||||
Bed width | mm | 1600 | ||||
Spindle hole | mm | 85 | ||||
Spindle taper | mm | Metric 120# 1:7 | ||||
Spindle speeds(Number) | r/min | Three speed hydraulic variable speed stepless speed regulation (0.8-18) (2.4-54) (7.2-160) | ||||
Metric threads range(kinds) | mm | 44kinds 1-120mm | ||||
Inch threads rangs(Kinds) | inch | 1-14 | ||||
Worm gear threads range(module) | mm | 1.5-20 | ||||
Longitudinal feeds range(kinds) | mm/r | 0.15-45 | ||||
Cross feed range(kinds) | mm/r | 0.063-24 | ||||
Rapid feed:Long./Cross | mm/min | 3400mm/min,1700mm/min | ||||
Cross slide travel | mm | 725 | ||||
Middle slide travel | mm | 600 | ||||
Size of tool shank | mm | 70*70 | ||||
Sleeve diameter | mm | 300 | ||||
Sleeve taper | Metric 100# taper 1:7 | |||||
Sleeve travel | mm | 300 | ||||

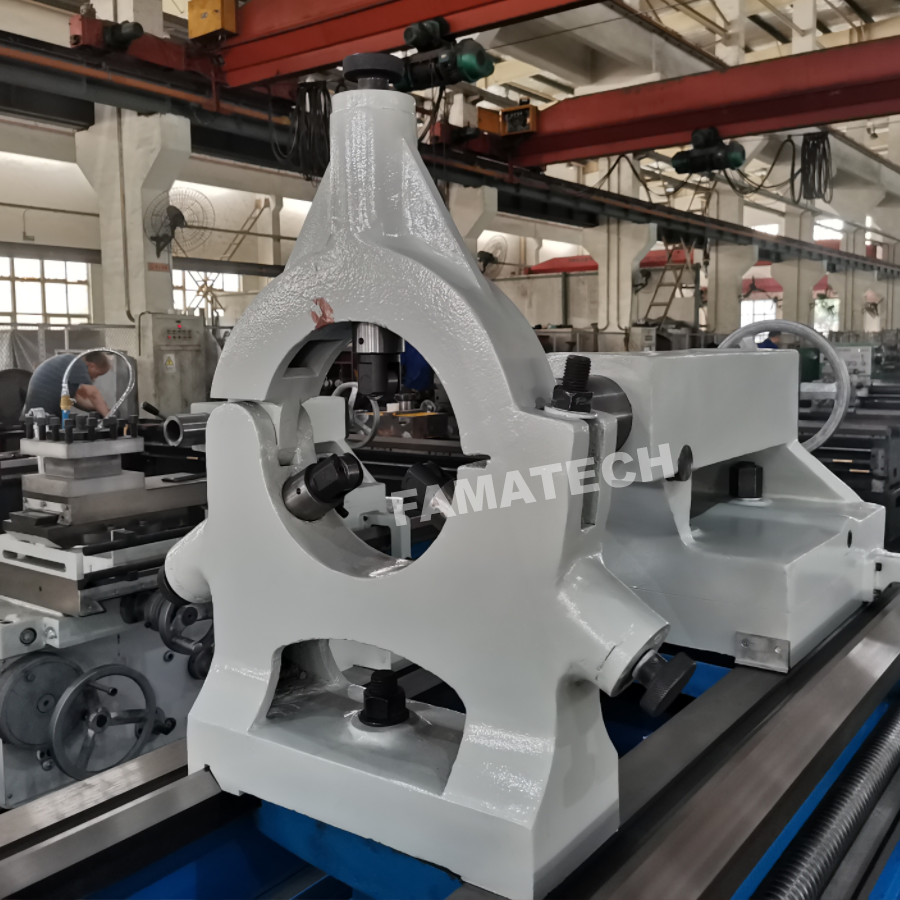

Close-type steady rest | mm | 400-750 | ||||
Open-type steady rest | mm | 650-1200 | ||||
Main drive motor | KW | 80 | ||||
Coolant pump power | KW | 1.5 | ||||
Rapid feed motor | KW | 1.5 | ||||
Net/Gross weight | kg | 37500 / 39000 / 40500 / 42000 / 45000 /48000 /52000 /58000 | ||||
