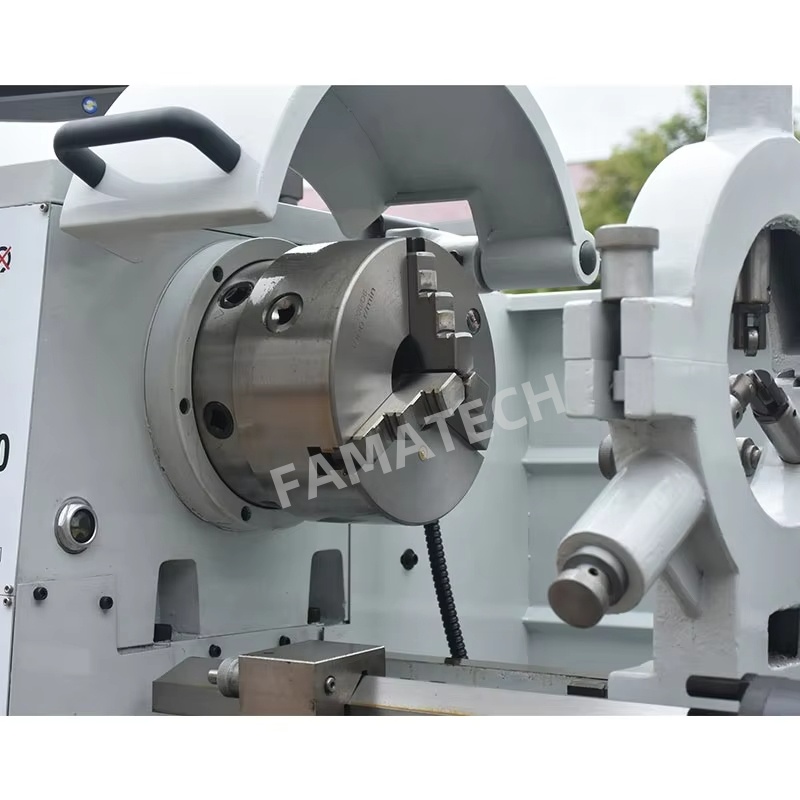

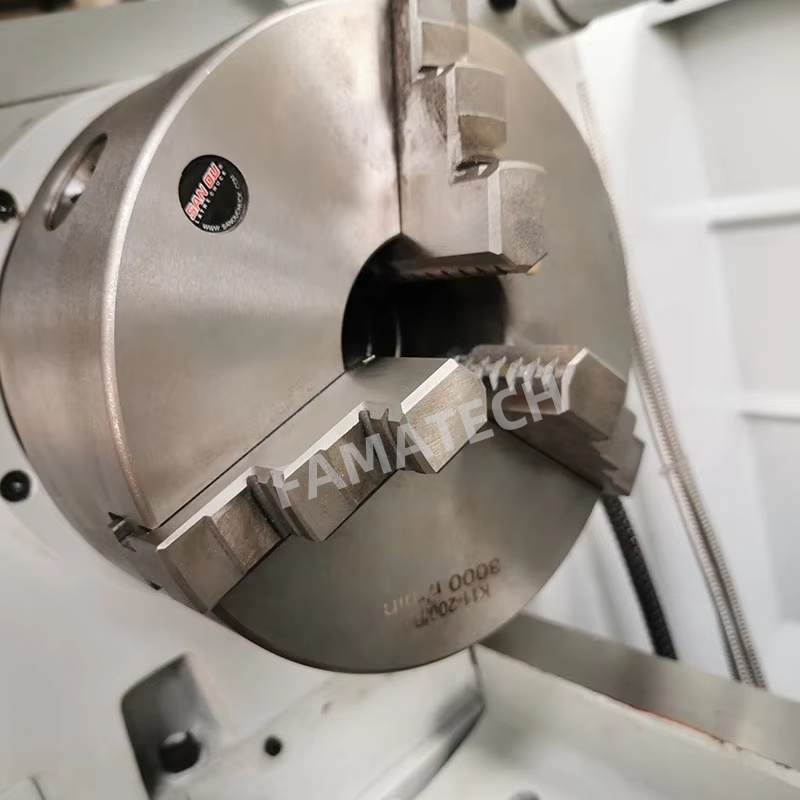

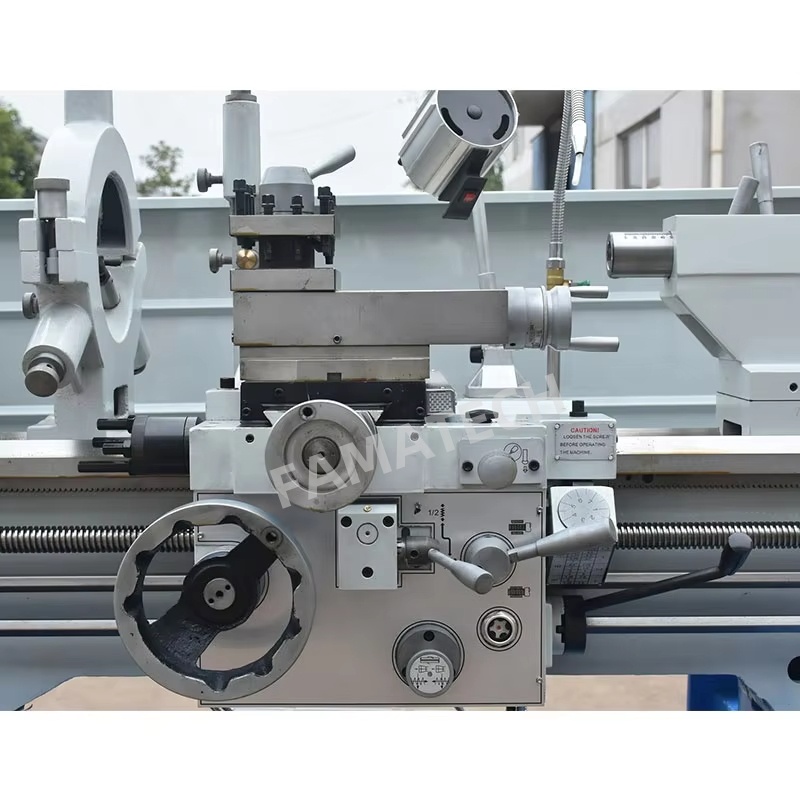

Manual Lathe Machine Metal Lathe Machine Bench Lathe with Spindle Bore 38/52mm FM360K/FM400K

Factory direct sale heavy duty horizontal lathe machine is with very competitive price, and is suitable for turning or cast iron and steel work piece,turning of non-ferrous metal parts of big or medium sizes.It can do external cylindrical surface turning,inner hole and end face turning.It can also turn various internal and external metric,inch,module and diametrical pitch threads,the top slide can be used independently for turning of short taper.These lathes are of high power,high rigidity and wide rotating speed range,so it can be used for high speed and strong force turning.Optional accessories include:DRO, chuck guard, toolpost guard, tin coated cutters, lead screw guard, taper turning attachment and quick change tool post .

Specification	Unit	FM360K		FM400K
Max.swing over bed	mm	356		400
Max.swing over gap	mm	530		790
Max.swing over cross slide	mm	210		250
Distance between centers	mm	1000
Bed width	mm	260
Spindle speeds(Number)	r/min	12 steps 40-1800
Spindle bore	mm	40mm (51mm as optional)		51
Spindle nose	/	D4		D5
Spindle taper	/	MT5		MT6
Center height	mm	178		204
Metric threads range(kinds)	/	0.4-7mm/39kinds(metric lathe) or 0.45-7.5mm/22kinds(inch lathe)
Inch threads rangs(Kinds)	/	4-56TPI/28kinds (Metric lathe) or 4-112TPI/40kinds (inch lathe)
Compound rest travel	mm	90
Cross slide travel	mm	210
Range of longitudinal feeds	/	0.043-0.653mm/rev/36kinds(metric lathe) or 0.0012-0.0294 inch /rev/40kinds(inch lathe)
Range of cross feeds	mm	0.024-0.359mm/rev/36kinds
Extemal diameter	mm	45

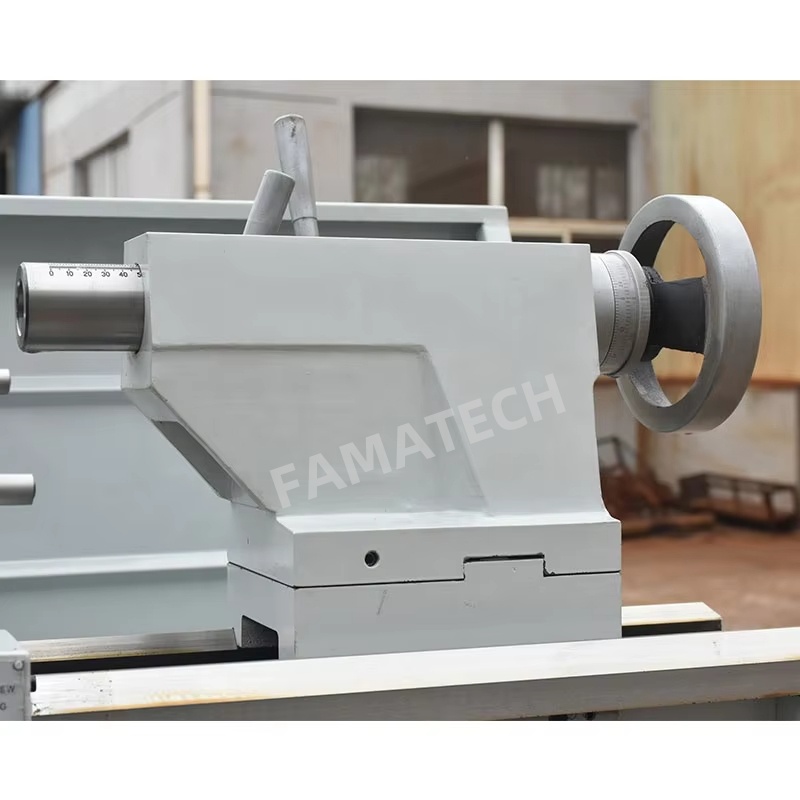

Travel of tailstock sleeve	mm/min	110
Taper of tailstock sleeve	mm	MT3
Spindle motor power	Kw	2.2
Coolant pump power	w	40
Size of tool shank	mm	16x16
Packing size(L×W×H)	mm	1990x760x1410
Net weight	kg	1150/1350	1350/1550
