Conventional Lathe Machine

Manual Lathe Machine Metal Lathe Machine Bench Lathe with Spindle Bore 38mm FM360F/FM400F


Max Swing Over Bed: 360/400mm

Max Work Piece Length:1000 mm

Spindle Power: 1.5kw/2.2kw(optional)

Spindle bore:38mm


  • Product Detail
  • Accessories


Manual Lathe Machine Metal Lathe Machine Bench Lathe with Spindle Bore 38mm FM360F/FM400F

Factory direct sale heavy duty horizontal lathe machine is with very competitive price, and is suitable for turning or cast iron and steel work piece,

turning of non-ferrous metal parts of big or medium sizes.It can do external cylindrical surface turning,inner hole and end face turning.It can also turn various

internal and external metric,inch,module and diametrical pitch threads,the top slide can be used independently for turning of short taper.These lathes are of high power,

high rigidity and wide rotating speed range,so it can be used for high speed and strong force turning.Optional accessories include:DRO, chuck guard, toolpost guard,

 tin coated cutters, lead screw guard, taper turning attachment and quick change tool post .


Specification

Unit

   FM360F

FM400F

Max.swing over bed

mm

356

400

Max.swing over gap

mm

506

550

Max.swing over cross slide

mm

220

264

Distance between centers

mm

      1000

Bed width

mm

     206

Spindle speeds(Number)

r/min

 16 steps  451800

Spindle bore

mm

38mm (51mm as optional)

51

Spindle nose


D4

D5

Spindle taper


MT5

MT6

Center height

mm

178

200

Metric threads range(kinds)


0.4-7mm/42kinds(metric lathe) or 0.45-7.5mm/22kinds(inch lathe)

Inch threads rangs(Kinds)


4-56TPI/28kinds (Metric lathe) or 4-112TPI/40kinds (inch lathe)

Compound rest travel

mm

       95

Cross slide travel

mm

       180

Range of longitudinal feeds


0.043-0.653mm/rev/36kinds(metric lathe)  or 0.0012-0.0294 inch /rev/40kinds(inch lathe)

Range of cross feeds

mm

     0.027-0.413MM/rev(metric lathe) or 0.0004-0.01 inch/rev( inch lathe)

Extemal diameter

   mm

45

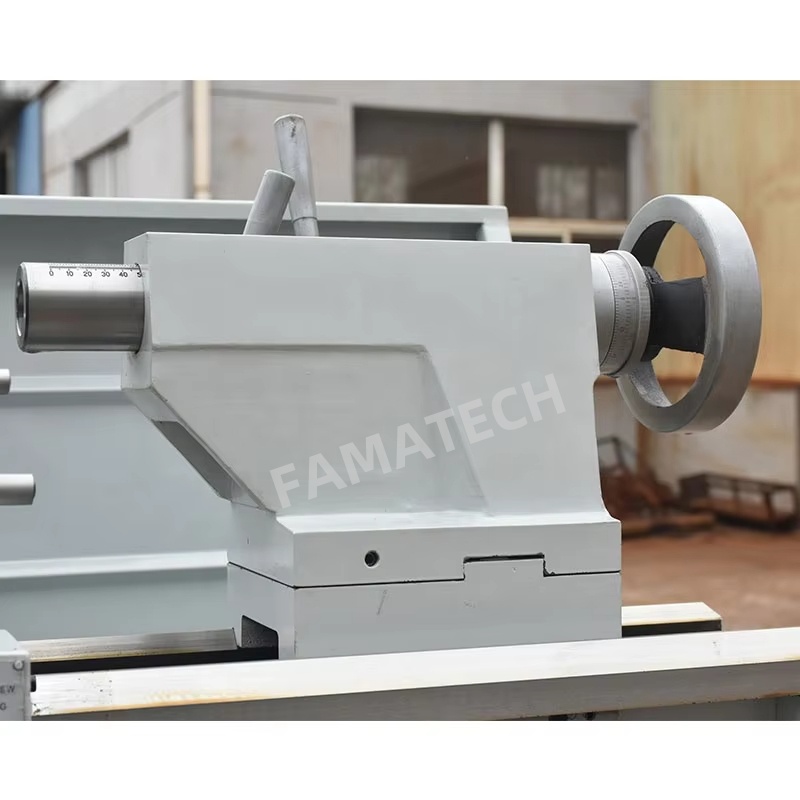

Travel of tailstock sleeve

mm/min

        100

Taper of tailstock sleeve

mm

         MT3

Spindle motor power

Kw

         1.5/2.4kw

Coolant pump power

w

        40

Size of tool shank

   mm

        16x16

Packing size(L×W×H)

mm

1935x750x1500

Net weight

kg

700/800

800/900
