Gear Head Lathe1500/ 2000mm/3000mm Heavy Duty Lathe Machine Price FM510A/FM560A/FM660A
factory direct sale heavy duty horizontal lathe machine is with very competitive price, and is suitable for turning or cast iron and steel work piece,turning of non-ferrous metal parts of big or medium sizes.It can do external cylindrical surface turning,inner hole and end face turning.It can also turn various internal and external metric,inch,module and diametrical pitch threads,the top slide can be used independently for turning of short taper.These lathes are of high power,high rigidity and wide rotating speed range,so it can be used for high speed and strong force turning.Optional accessories include:DRO, chuck guard, toolpost guard, tin coated cutters, lead screw guard, taper turning attachment and quick change tool post .
Specification | Unit | FM510A | FM560A | FM660A |
Max.swing over bed | mm | 510 | 560 | 660 |
Max.swing over gap | mm | 735 | 785 | 885 |
Max.swing over cross slide | mm | 305 | 355 | 455 |
Distance between centers | mm | 1500/2000/3000 | ||
Length of gap | mm | 200 | ||
Bed width | mm | 350 | ||
Spindle bore | mm | 80/103 | ||
Spindle taper | mm | No.7 Morse φ113 (1:20) | ||
Spindle speeds(Number) | r/min | 12 changes 25-1600r/min/25-1500r/min | ||
Metric threads range(kinds) | 47 kinds 0.2-14mm | |||
Inch threads rangs(Kinds) | 60 kinds, 2-112TPI | |||
Moudle threads range(kinds) | 34 kinds, 0.1-7MP | |||
Diametral threads | 50 kinds, 4-112TPI | |||
Range of longitudinal feeds | 35 kinds,0.059-1.646mm/rev | |||
Range of cross feeds | mm | 35 kinds,0.020-0.573mm/rev | ||

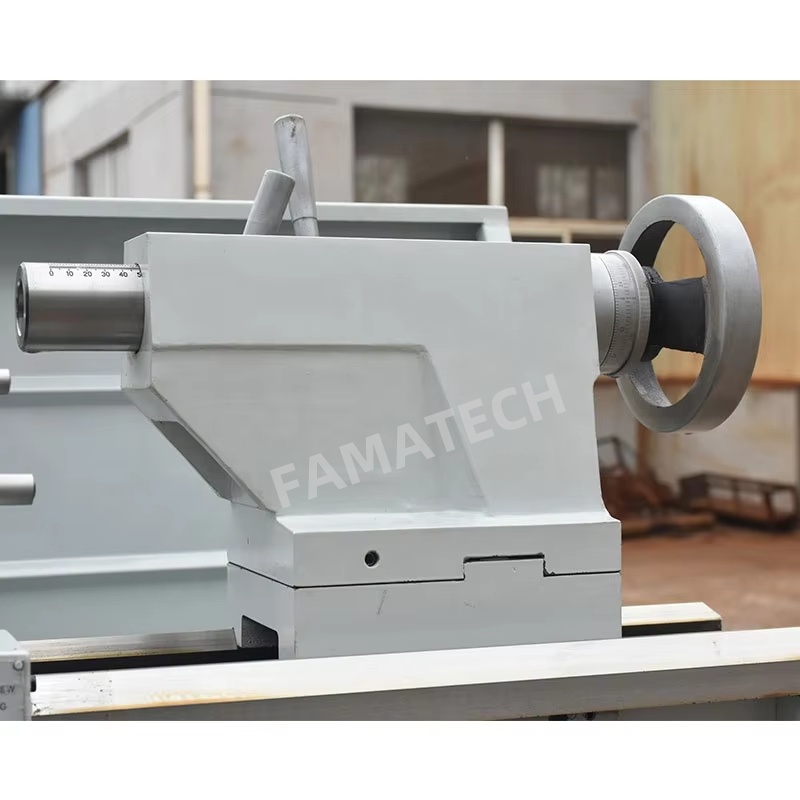

Dia.of tailstock sleeve | mm | 75 | ||
Travel of tailstock sleeve | mm/min | 180 | ||
Taper of tailstock sleeve | mm | MT5 | ||
Size of tool shank | mm | 25x25 | ||
Max travel of cross slide | mm | 326 | 326 | 355 |
Max.travel of compound rest | mm | 130mm | ||
Main motor power | kw | 7.5 | ||
Overall dimensions(L×W×H) | mm | 2400/2850/3350/3700/4350x1150x1460 | 2400/2850/3350/3700/4350X1150X1510 | |
Packing size(L×W×H) | kw | 2450/2900/3400/3750/4400x1150x1740 | 2450/2900/3400/3750/4400x1150x1820 | |
Net weight | kw | 2150/2270/2530/2610/2930 | 2420/2540/2800/2880/3200 | |
