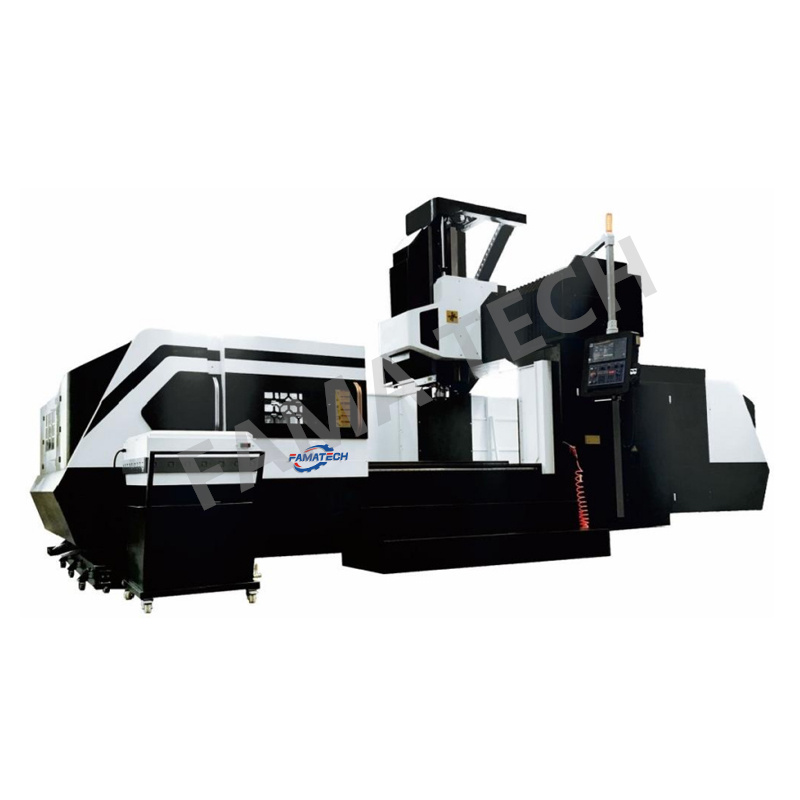

FAMATECH adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term. X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway;high-precision, high-speed, strong cutting and high rigid. Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool. For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.

MAIN CONFIGURATION & ACCESSORIES:

1. Resin sand casting;
2. X, Y rails adopts imported linear guideway, Z rail is quenching - plastic sliding guide rail pair;
3. Imported rolling screw, rack, gear box;
4. X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover;
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head;
6. Taiwan production pneumatic cylinder;
7. Taiwan ATC, carousel type, disc type, chain type are available as option;
8. Imported bearings for leadscrews;
9. Famous brand coupling;
10. Headstock balancing system is Nitrogen balance system as option;
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. Double spiral chip conveyor;
21. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
