Max. drilling diameter

35mm

Max. tapping diameter

M20

Distance from spindle axis to generating line of column

330mm

Distance from spindle nose to workable surface

610mm

Distance from spindle nose to base plate surface

1150mm

Spindle travel

150mm

Max. adjusment of workable and table rest

540mm

Swivel of table and table rest

+/-45°

Spindle taper

MT4

Range of spindle feeds

70-2600rpm

Number of spindle feeds

12

Spindle feed range

0.1,0.2,0.3mm/r

Column diameter

140mm

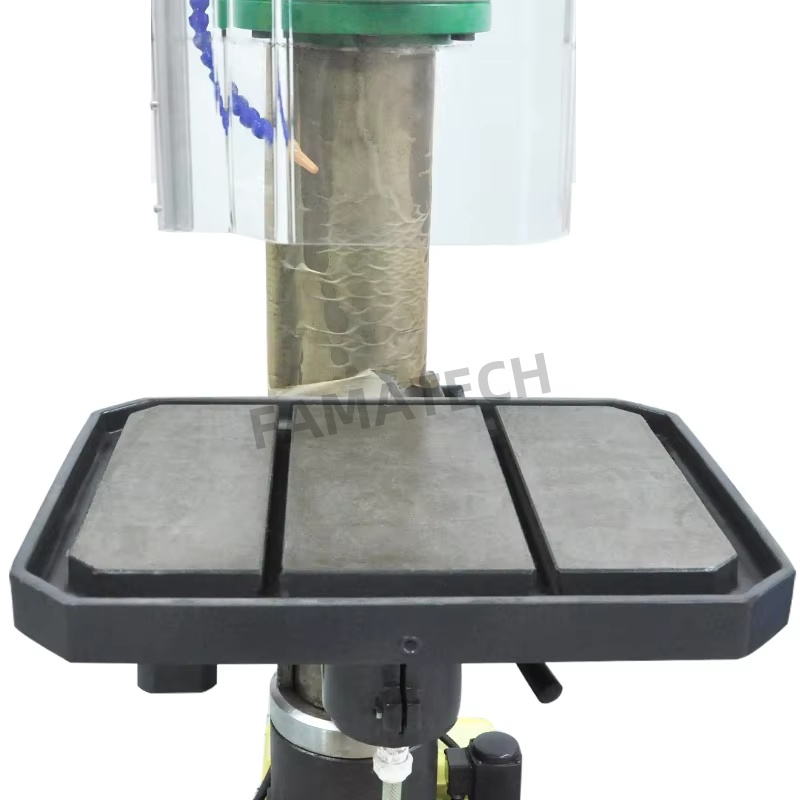

Effective working area of table (L*W)

424*424mm

Effective working area of base plate (L*W)

420*380mm

Dimension of T-slot of table and base plate

2-14mm, 2-16mm

Main motor power

1.5/2.2kw

Package size

700*1150*2150mm

Weight

670/730kg
