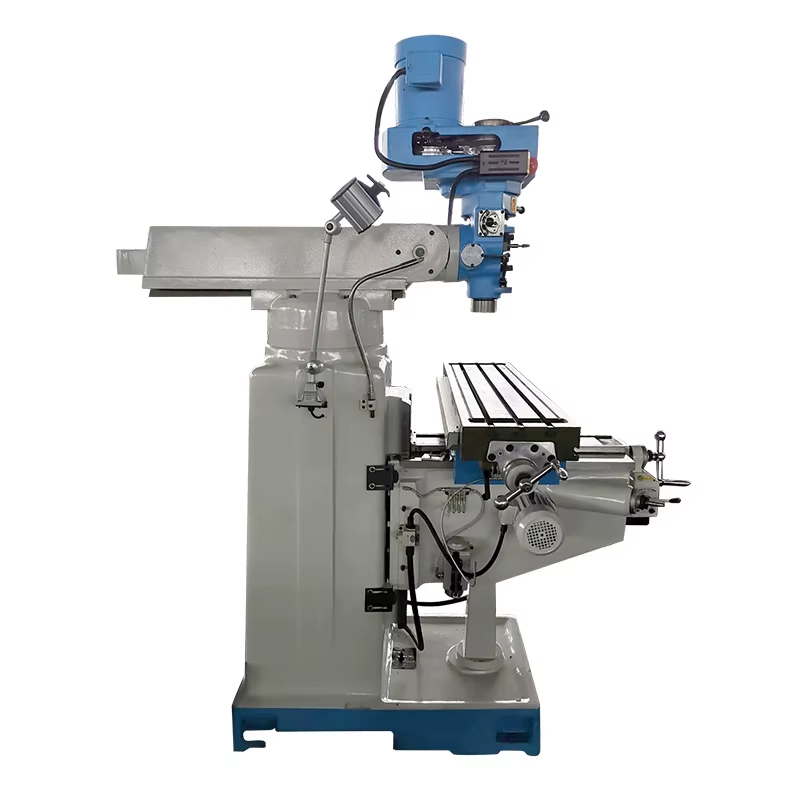

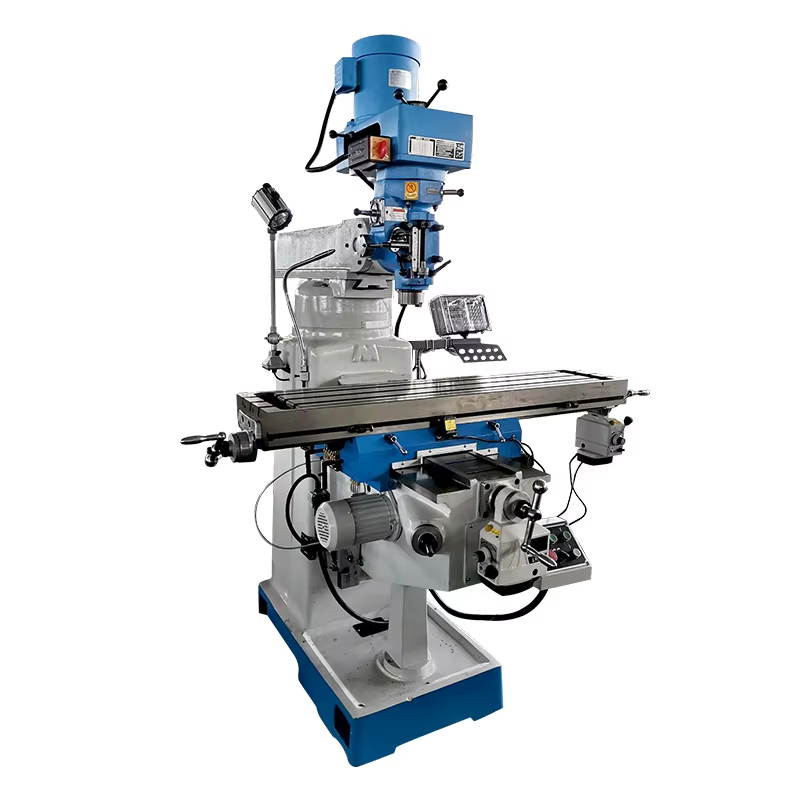

FM300 Turret milling machine

Spindle taper:R8 / ISO30 / ISO40

X/Y/Z axis travel: 850/400/450mm

Motor:2.25kw W


  • Product Detail
  • Accessories

Manual milling machine FM300 vertical turret milling machine bed type universal milling machine

1. We're professional FM300 small turret milling machine suppliers in China, specialized in providing high quality products with low price.

2. Universal milling machine having a table fitted with all motions and a dividing head with change gears so that it can perform any type of milling operation.
3. Rectangular guideway on Y and Z axis makes the machine stable and rigid.
4. The guideway on saddle is lined with TF wearable material.
5. Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.
6. DRO is optional.
7. It is with Taiwan milling turret head.

Model

FM300

Table size

1370×305mm

T-slotes (No./Width/Pitch)

3/16/65mm

Table travel (X/Y/Z)

850×400×450mm

Distance between spindle nose and table surface

0-460mm

Spindle speed

66-4540rpm

Main motor power

5HP

Spindle taper

ISO40

Travel of spindle sleeve

127mm

Arm travel

500mm

Feed of spindle sleeve

0.04/0.08/0.15mm/r

Milling head rotation

swivel:45° tiltle:90°

Machine overall size (L*W*H)

1750×1650×2150mm

N.W

1350kg
