MAIN CONFIGURATION & ACCESSORIES:
1.Resin sand casting;
2.X, Y,Z rails are quenching - plastic sliding guide rail pair;

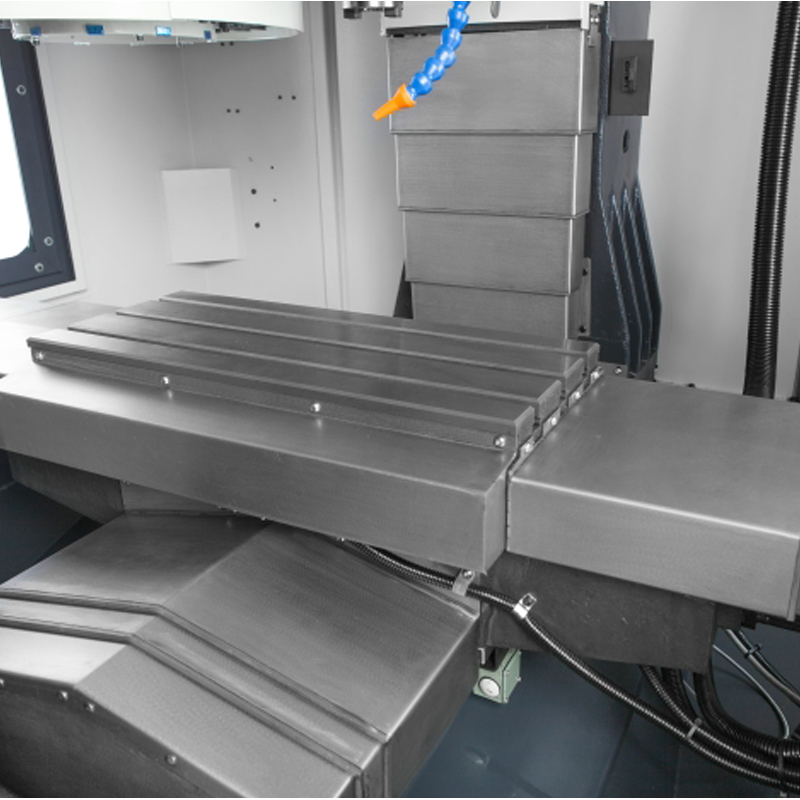

3.X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5.Taiwan production pneumatic cylinder;
6.Taiwan ATC, bamboo type and disc type are available as option;
7.Taiwan bearings for leadscrews;
8. Imported coupling;
9.Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
Model | VMC640 |
Worktable Size | 800X320mm |
Travel（Longitudinal X/ Horizontal Y/ Vertical Z） | 600X400X450mm |
Distance of Spindle Axis to Guideway Plane | 400mm |
Distance of Spindle End to Worktable | 80-530mm |
Max. Spindle Rotating Speed | 8000rpm Servo Spindle |
Spindle Taper | BT40 |
Max loading | 200kg |
Main Motor Power | 5.5KW |

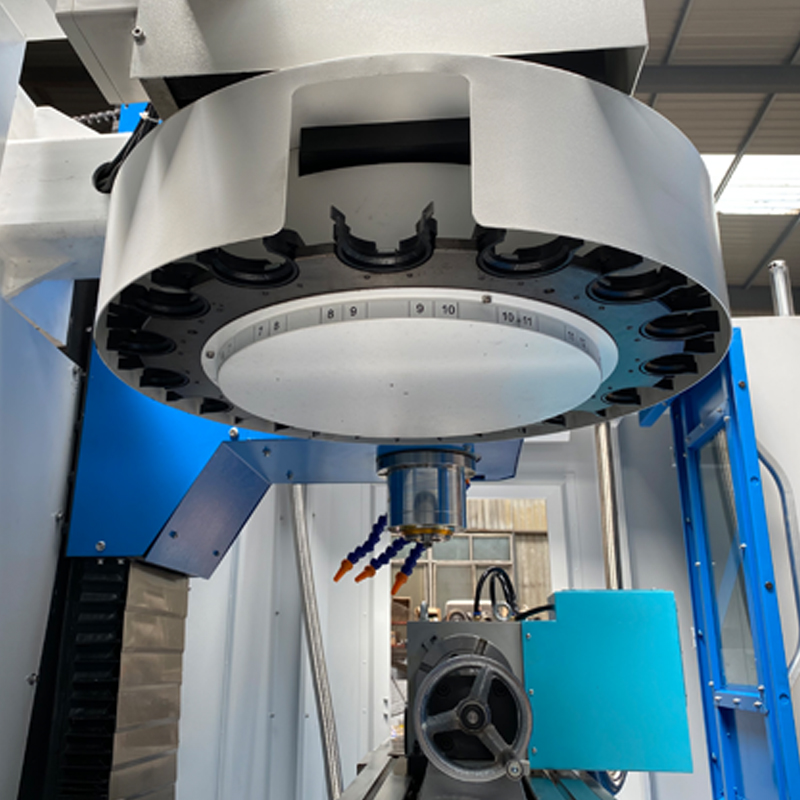

Tool Magazine | 12T Taiwan Umbrella Type |
Z Motor Torque | 15N.m |
X Motor Torque | 6N.m |
Y Motor Torque | 6N.m |
The Vertical Permissible Error of Spindle Axis to Worktable Plane | ≤0.02mm |
Positioning Accuracy | 0.02mm |
Repeated Positioning Accuracy | 0.01mm |
System Configuration | Siemens/FANUC/GSK Available |
Machine Overall Dimension (L*W*H) | 2300*1950*2400mm |
Machine Net Weight | 2600kgs |
External Protection Level | Full Closed |
