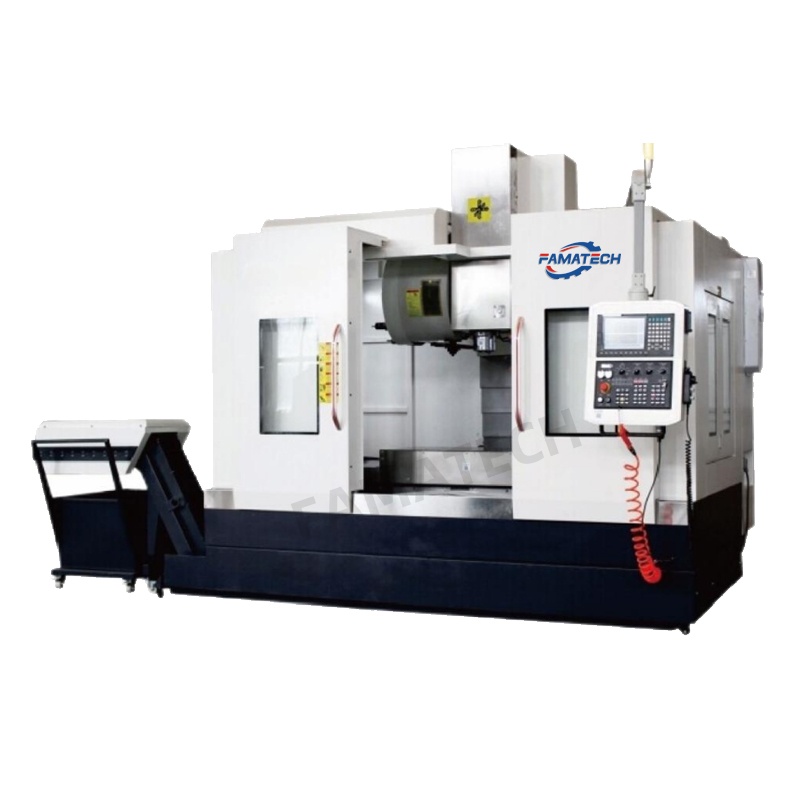

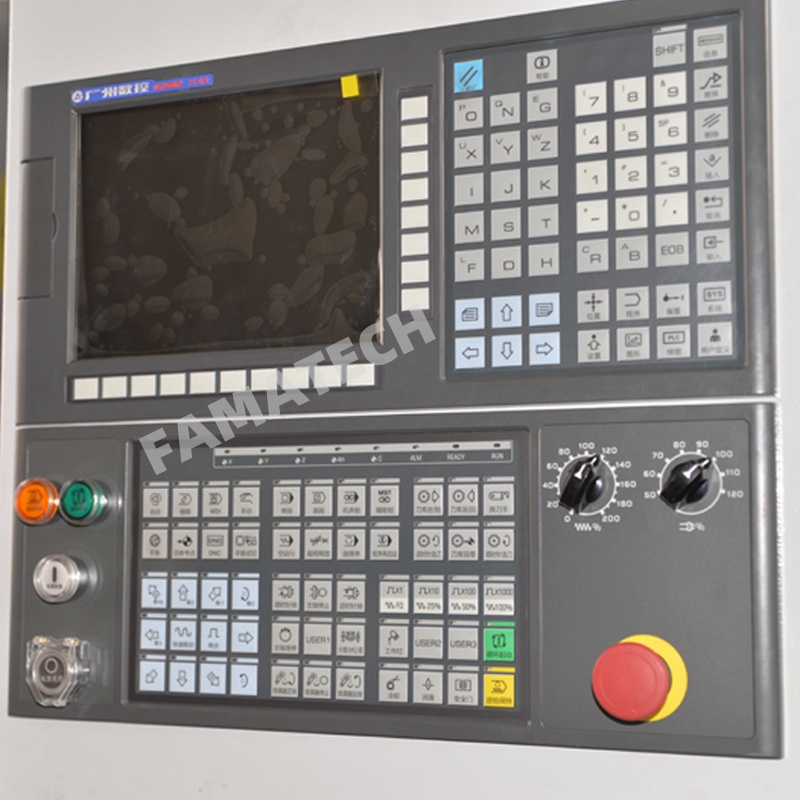

Famatech VMC850/VMC855/VMC1160 Vertical Machining Center CNC Siemens 828D GSK/FANU Control System 3 Axis 4 Axis 5 Axis Vertical CNC Milling Machine
MAIN CONFIGURATION & ACCESSORIES:
1.Resin sand casting;
2.X, Y,Z rails are quenching - plastic sliding guide rail pair;
3.X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5.Taiwan production pneumatic cylinder;

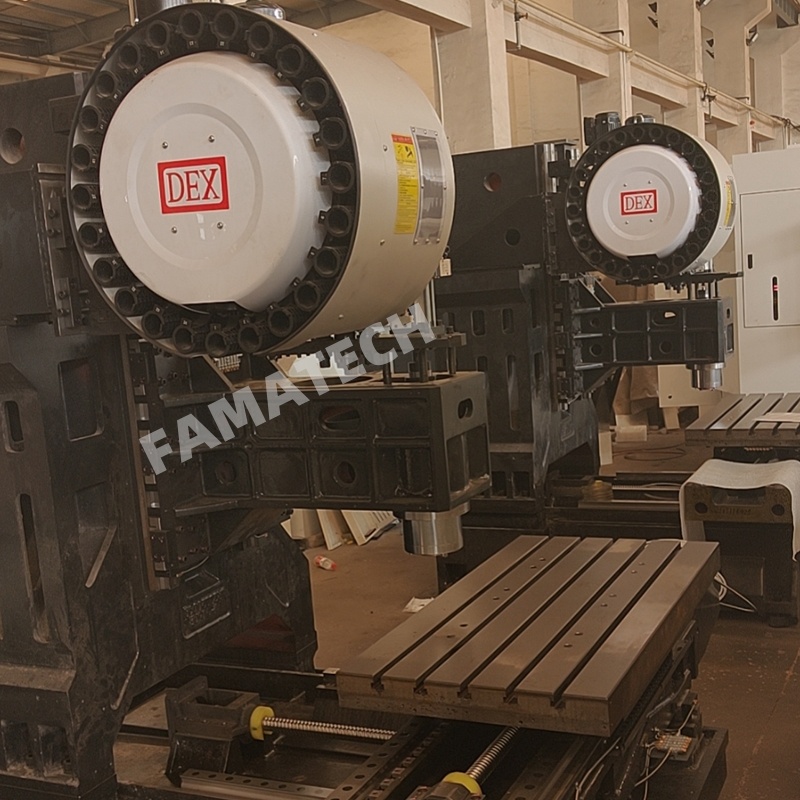

6.Taiwan ATC, carousel type and disc type are available as option;
7.Imported bearings for leadscrews;
8. Imported coupling;
9.Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16.Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
Model | VMC850 | VMC855 | VMC1160 |
Table size | 1000x500mm | 1000x550mm | 1200x600mm |
T-slot (No./width/pitch) | 3/18/150mm | 3/18/150mm | 3/18/150mm |
Loading capacity | 500kg | 500kg | 800kg |
Longitudinal travel (X) | 800mm | 800mm | 1100mm |
Cross travel (Y) | 500mm | 550mm | 600mm |
Vertical travel (Z) | 500mm | 550mm | 600mm |
Distance from spindle nose to table | 120-620mm | 120-670mm | 120-720 |
Distance from spindle center to column | 524mm | 595mm | 672mm |
Spindle taper | BT40 | BT40 | BT40 |
Spindle speed | 8000rpm | 8000rpm | 8000rpm |
X/Y/Z-axis rapid feed speed | 36/36/36 m/min | 36/36/36 m/min | 36/36/36 m/min |
X/Y/Z-axis positioning accuracy | ±0.005/300mm | ±0.005/300mm | ±0.005/300mm |
X/Y/Z-axis repeatability accuracy | ±0.003/300mm | ±0.003/300mm | ±0.003/300mm |
Main motor power | 7.5/11kw | 7.5/11kw | 11/15kw |
Air pressure source | 8kg/cm2 | 8kg/cm2 | 8kg/cm2 |
Tool magazine capacity | 24 (Disc)T | 24 (Disc)T | 24 (Disc)T |
Machine weight | 4800kg | 5500kg | 7000kg |
Machine dimensions (LxWxH) | 2750x2300x2550mm | 2800x2350x2800mm | 3300x2280x2550mm |
