Table size

1360×700 mm

T-slot (No./width/pitch)

5/18/152.5 mm

Loading capacity

1200 kg

Longitudinal travel (X)

1300 mm

Cross travel (Y)

700 mm

Vertical travel (Z)

700 mm

Distance from spindle nose to table

140-840 mm

Distance from spindle center to column

785 mm

Spindle taper

BT40/BT50

Spindle speed

6000rpm

X/Y/Z-axis rapid feed speed

15/15/15 m/min

X/Y/Z-axis feed motor torque

β22/β22/β30

X/Y/Z-axis positioning accuracy

±0.01 mm

X/YZ-axis repetability accuracy

±0.008 mm

Main motor power

15/18.5 kw

Air pressure source

8 kg/cm2

Total power

30 Kva

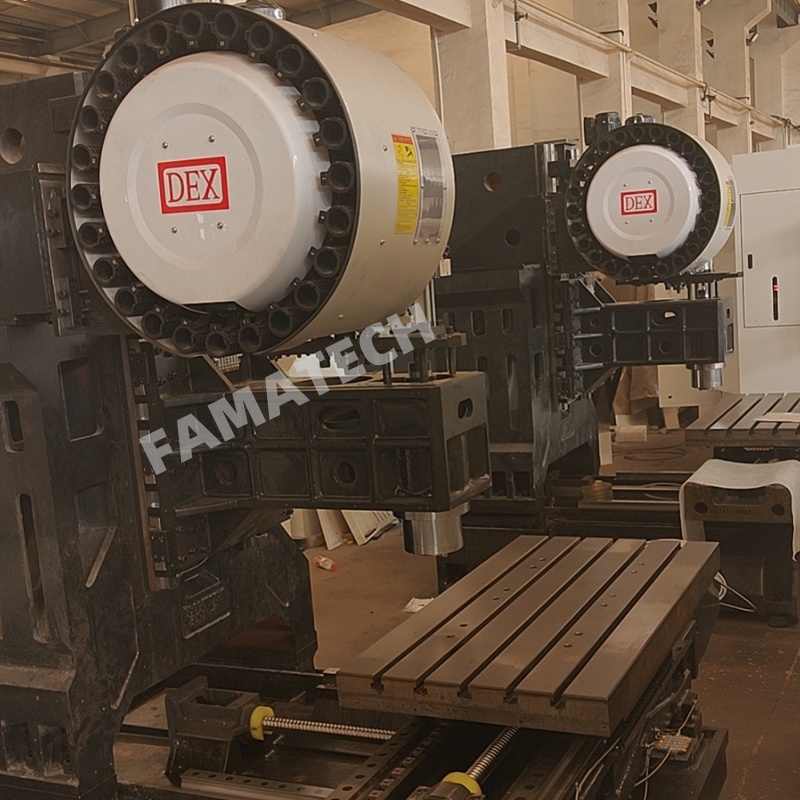

Tool magazine capacity

24 (Disc) T

Machine weight

10000kg

Machine dimensions (LxWxH)

3820×2600×3100mm
