Famatech VMC1580/VMC1690/VMC1890/VMC23100 Vertical Machining Center CNC Siemens 828D GSK/FANU Control System 3 Axis 4 Axis 5 Axis Vertical CNC Milling Machine

MAIN CONFIGURATION & ACCESSORIES:

1.Resin sand casting;

2.X, Y,Z rails are quenching - plastic sliding guide rail pair;

3.X, Y, Z rails adopt stainless steel telescopic cover;

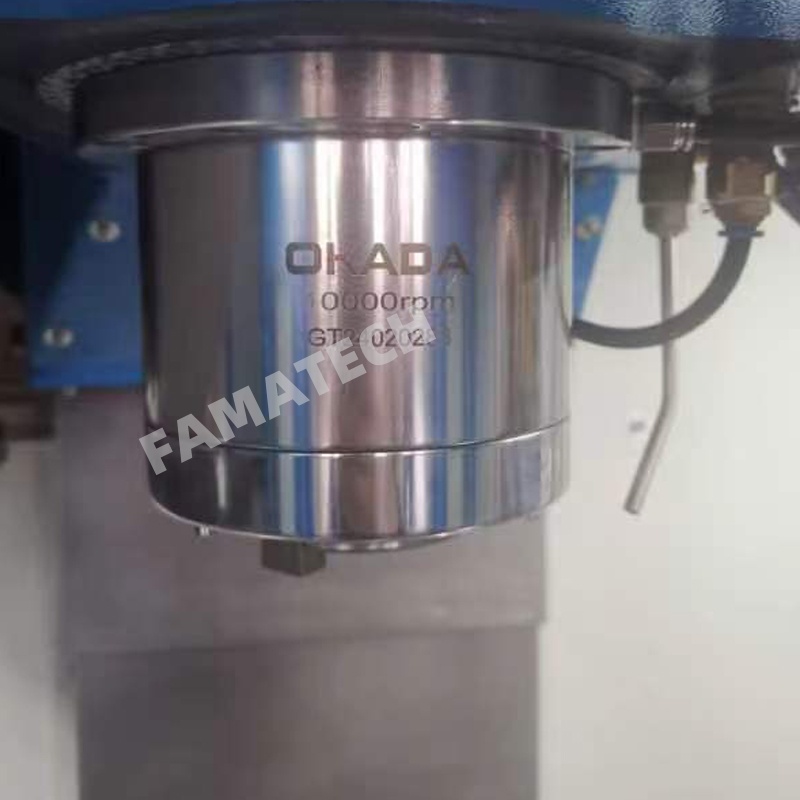

4. Standard with belt driven spindle, optional for direct driven spindle;

5.Taiwan production pneumatic cylinder;

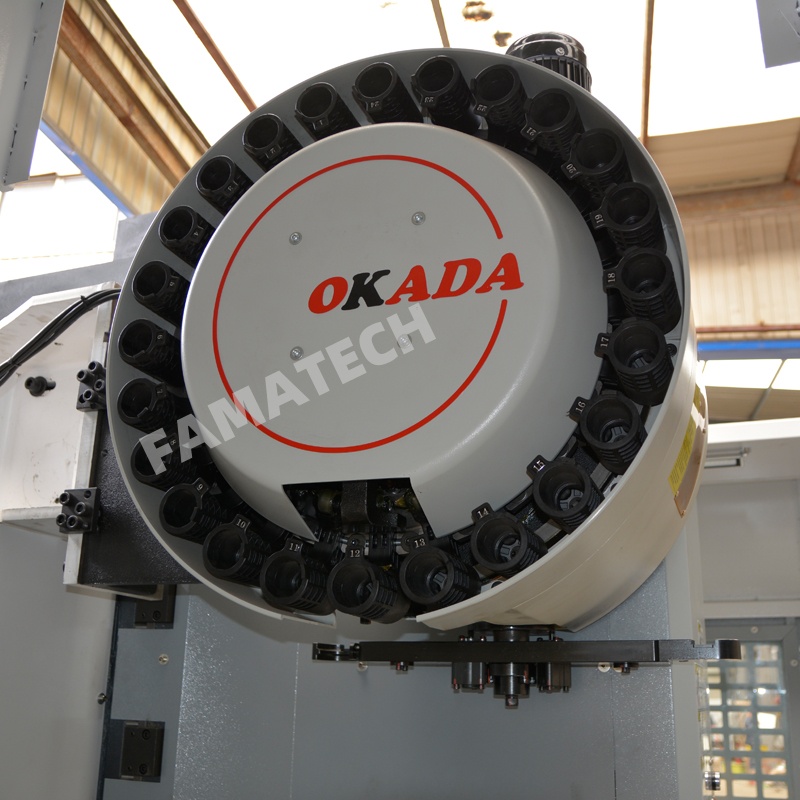

6.Taiwan ATC, carousel type and disc type are available as option;

7.Imported bearings for leadscrews;

8. Imported coupling;

9.Headstock balancing system have heavy casting or nitrogen balance system as option;

10. Full enclosure;

11. Rigid tapping;

12. Spindle center air blast;

13. Work lamp;

14. Pilot lamp;

15. USB and LAN interface;

16.Manual pulse generator (MPG);

17. Centralized automatic lubrication system.

Model	VMC1580	VMC1690	VMC1890	VMC23100
Table size	1600x800mm	1800x900mm	2000x900	2500x800mm
T-slot (No./width/pitch)	5/22/135mm	5/22/165mm	5/22/165mm	5/22/165mm
Loading capacity	1400kg	1600 kg	2000kg	4000kg
Longitudinal travel (X)	1500mm	1600 mm	1800	2100mm
Cross travel (Y)	800mm	900 mm	900	800mm
Vertical travel (Z)	700mm	800 mm	800	800mm
Distance from spindle nose to table	150-850mm	150-950mm	150-950mm	100-900mm
Distance from spindle center to column	855mm	950mm	950mm	850mm
Spindle taper	BT-50 (155)	BT50	BT50	BT50
Spindle speed	6000rpm	6000r/min	6000r/min	6000r/min
X/Y/Z-axis rapid feed speed	24/24/24 m/min	20/20/20 m/min	20/20/20 m/min	20/20/20 m/min
X/Y/Z-axis feed motor torque	β30/β30/β30	β30/β30/β30	40/40/40	12/12/12
X/Y/Z-axis positioning accuracy	±0.005/300	±0.005/300	±0.005/300	±0.005/300
X/Y/Z-axis repeatability accuracy	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Main motor power	15/18.5kw	15/18.5kw	15/18.5kw	15/18.5kw
Air pressure source	6-8kg/cm2	8kg/cm2	8kg/cm2	8kg/cm2
Total power	35Kva	35Kva	40Kva	40Kva
Tool magazine capacity	24 (Disc)T	24 (Disc)T	24 (Disc)T	24 (Disc)T
Machine weight	12000kg	13800	15500	16500
Machine dimensions (LxWxH)	410030203610mm	4700x3220x3710mm	4590x3960x3440	5200x3220x3710
