Horizontal Lathe CQ6232 FM330H Manual Bench Metal Gap Bed Lathe Torno machine
Famatech brand new manual lathe machines is widely used conventional lathe machine. Features or advantages of lathe machine are as below:
Used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread.Processing of precision parts, the sample processing and processing of the model can also be used.
After high frequency quenching process and precision grinding of high-quality cast iron bed.Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning
Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
Model | FM330 | FM360 |
Swing over Bed | 330 mm | 360 mm |
Swing over Cross Slide | 198 mm | 212 mm |
Swing over Gap | 476 mm | 491 mm |
Distance Between Centers | 750 / 1,000 mm | |
Spindle Bore | 38 or 52mm(Optional) | |
Headstock Spindle Taper | MT 5 | |
Range of Spindle Speeds | 35/70 – 2,000 rpm (2 SPEED Motor) | |
Range of Metric Longitudinal Feeds | 36 Nos. 0.050 – 0.696 mm/rev 32 Nos. 0.052 – 0.392 mm/rev | |
Range of Imperial Longitudinal Feeds | 36 Nos. 0.0019″ – 0.0273″ /rev32 Nos. 0.002″ – 0.0154″ /rev | |
Range of Metric Cross Feeds | 36 Nos. 0.013 – 0.188 mm/rev 32 Nos. 0.014 – 0.380 mm/rev | |
Range of Imperial Cross Feeds | 36 Nos. 0.00052″ – 0.0074″ /rev 32 Nos. 0.00055″ – 0.015″ /rev | |
Range of Imperial Threads | 36 Nos. 8.0 – 112.0 TPI34 Nos. 4.0 – 56.0 TPI | |
Number of Imperial Threads | 36 / 34 | |
Range of Metric Threads | 28 Nos. 0.20 – 5.00 mm26 Nos. 0.4 – 7.00 mm | |
Number of Metric Threads | 28 / 26 | |

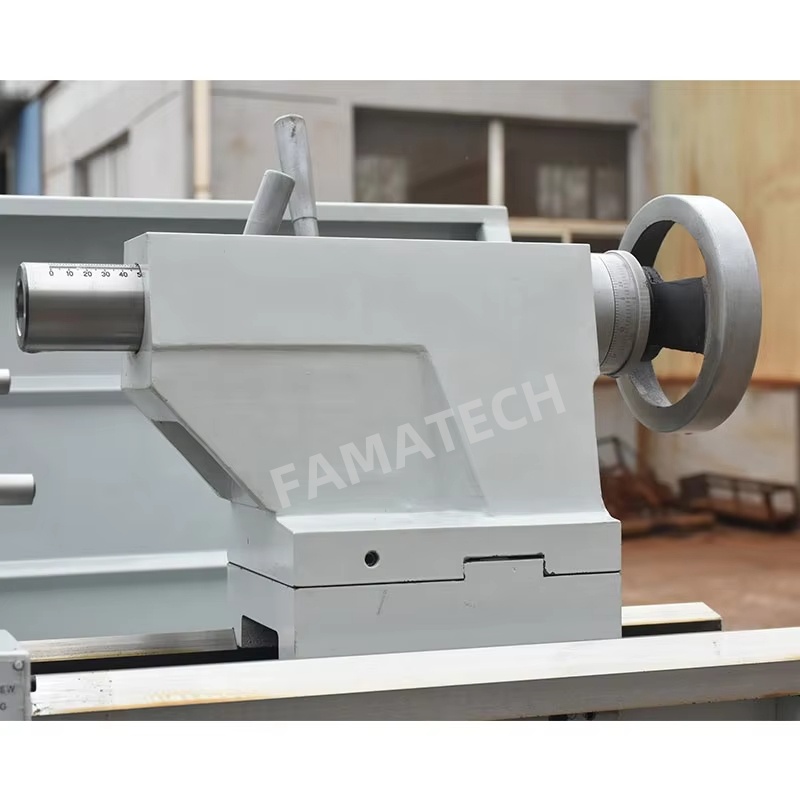

Tailstock Quill Travel | 100 mm | |
Tailstock Quill Taper | MT 3 | |
Motor Power | 1,500W | |
Net Weight | 570/640kg | |
Packing Size (LxWxH) | 1,740/1,950 x 750 x 1,510 mm | |
Gross Weight | 620/690kg | |
