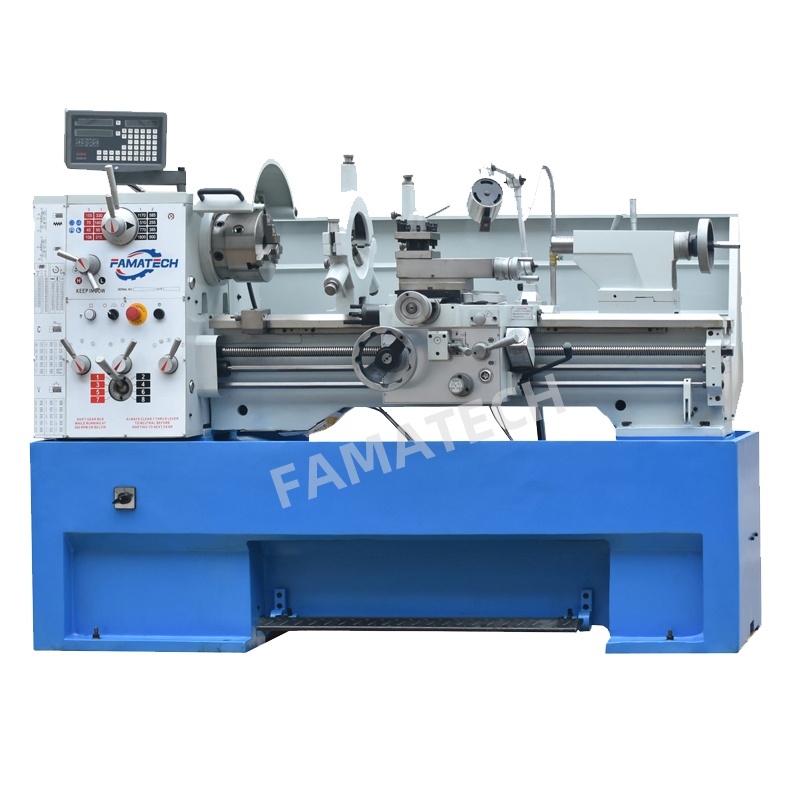

FM410 metal lathe machine 410*1000/1500mm manual conventional horizontal lathe machine
Famatech brand new manual lathe machines is widely used conventional lathe machine. Features or advantages of lathe machine are as below:
Used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread.Processing of precision parts, the sample processing and processing of the model can also be used.
After high frequency quenching process and precision grinding of high-quality cast iron bed.Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning
Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
Model | FM410×1000 /1500mm | |
Swing over bed | 410mm | |
Swing over cross slide | 255mm | |
Swing in gap | 580mm | |
Length of gap | 19mm | |
Distance between centers | 1000mm | 1500mm |
Center height | 205mm | |
Width of bed | 250mm | |
Spindle nose | D1-6 | |
Spindle bore | 52mm | |
Taper of spindle bore | MT6 | |
Range of spindle speed | 16 changes 45-1800r/min | |
Travel of compound rest | 102mm | |
Max.travel of cross slide | 210mm | |
Leadscrew pitch | 4T.P.I. | |
Max.Section of tool | 20×20mm | |
Longitudinal feeds range | 0.05-1.7mm/rev(0.002-0.067/rev) | |
Cross feeds range | 0.025-0.85mm(0.001-0.0335/rev) | |
Cross feeds range | 0.025-0.85mm(0.001-0.0336/rev) | |
Inch threads range | 45kinds 2-72T.P.I | |
Diametrical pitches range | 21kinds 8-44D.P. | |
Module pitches range | 18kinds 0.3-3.5M.P. | |
Dia.of tailstock sleeve | 50mm | |
Travel of tailstock sleeve | 120mm | |
Taper of tailstock sleeve | MT4 | |
Power of main motor | 2.2/3.3kw(optional 3.0/4.5kw) | |
Power of coolant pump | 90w | |
Overall dimension | 1940×850×1300mm | 2440×850×1300mm |
Packing size | 2060/2560×900×1640mm | 2060/2560×900×1640mm |
N.W/G.W | 1500/1750kgs | 1550/1800kgs |
