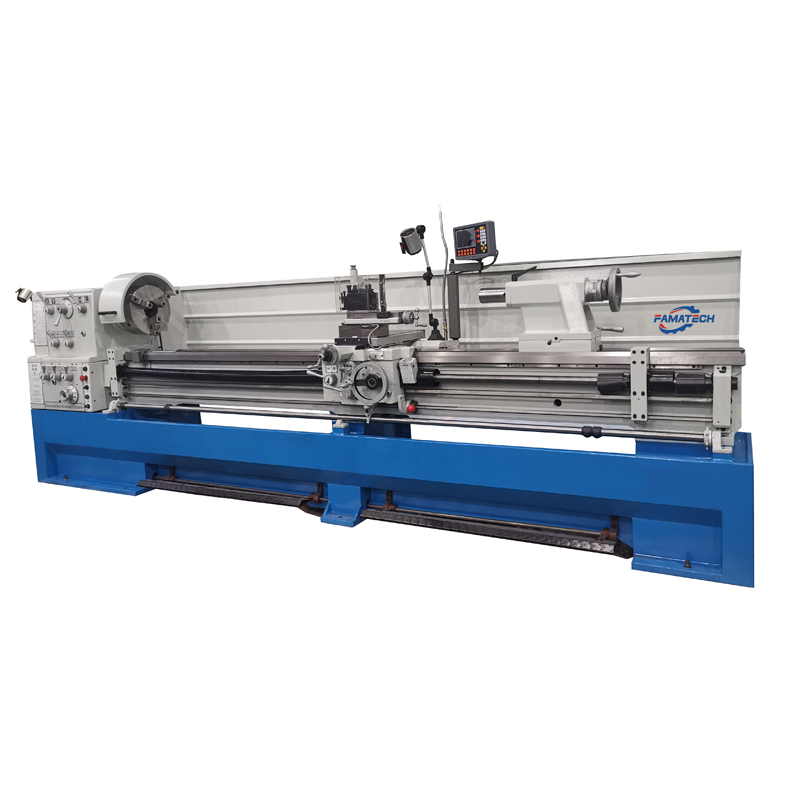

FM510/FM560 metal lathe machine 510/560mm*1000/1500/2000/3000mm manual conventional horizontal lathe machine
Famatech brand new manual lathe machines is widely used conventional lathe machine. Features or advantages of lathe machine are as below:
Used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread.Processing of precision parts, the sample processing and processing of the model can also be used.
After high frequency quenching process and precision grinding of high-quality cast iron bed.Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning
Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
Model | FM510 | FM560 |
Swing over Bed | 510 mm | 560 mm |
Swing over Cross Slide | 300 mm | 350 mm |
Swing over Gap | 738 mm | 788 mm |
Distance Between Centers | 1000 / 1500 / 2000 / 3000 mm | 1000 / 1500 / 2000 / 3000 mm |
Width of Bed | 350 mm | 350 mm |
Spindle Bore | 80 mm | 80 mm |
Spindle Taper | MT7 | MT7 |
Spindle Nose | D1-8 | D1-8 |
Range of Spindle Speeds | 25-1,600 rpm | 25-1,600 rpm |
Range of Longitudinal Feeds | 0.059-1.646 mm/rev | 0.059-1.646 mm/rev |
Range of Traverse Feeds | 0.020-0.573 mm/rev | 0.020-0.573 mm/rev |
Tailstock Quill Travel | 180 mm | 180 mm |
Tailstock Quill Taper | MT5 | MT5 |
Number of Inch Threads | 60 | 60 |
Range of Inch Threads | 2-112 TPI | 2-112 TPI |
Number of Metric Threads | 47 | 47 |
Range of Metric Threads | 0.2-14.0 mm | 0.2-14.0 mm |
Main Motor Power | 7,500 w (10HP) | 7,500 w (10HP) |
Coolant Power | 100 w (1/8 HP) | 100 w (1/8 HP) |
Overall Dimensions (LxWxH) | 2900 x 1120 x 1430 mm | 3400 x 1120 x 1430 mm |
Net Weight | 2335 / 2685 / 2370 / 2720 kg | 2335 / 2685 / 2370 / 2720 kg |
Packing Size (LxWxH) | 2960 x 1130 x 1820 mm | 3460 x 1130 x 1820 mm |
Gross Weight | 2700 / 3070 / 2740 / 3110 kg | 2700 / 3070 / 2740 / 3110 kg |
