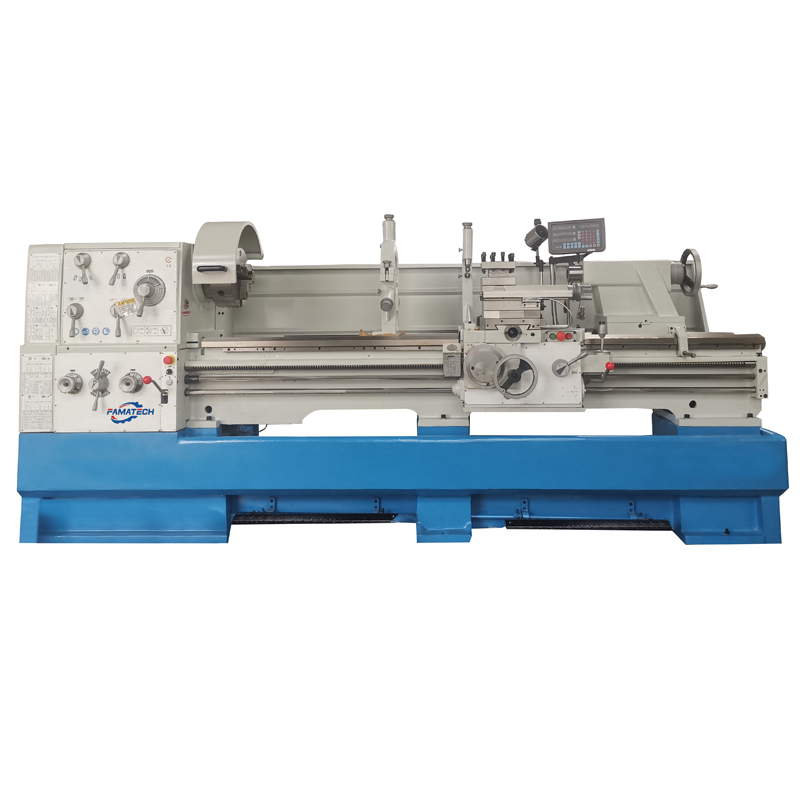

FM510/FM560 metal lathe machine 510/560mm*1000/1500/2000/3000mm manual conventional horizontal lathe machine
Famatech brand new manual lathe machines is widely used conventional lathe machine. Features or advantages of lathe machine are as below:
Used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread.Processing of precision parts, the sample processing and processing of the model can also be used.
After high frequency quenching process and precision grinding of high-quality cast iron bed.Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning
Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
Model | FM660 | FM800 |
Swing over Bed | 660 | 800 mm |
Swing over Cross Slide | 440 mm | 570 mm |
Swing over Gap | 900 mm | 1035 mm |
Distance Between Centers | 1500 / 2000 / 3000 mm | 1500 / 2000 / 3000 mm |
Width of Bed | 400 mm | 400 mm |
Spindle Bore | 105 mm | 105 mm |
Spindle Taper | MT5 | MT5 |
Spindle Nose | D1-8 | D1-8 |
Range of Spindle Speeds | 26-1,700 rpm | 26-1,700 rpm |
Compound Slide Travel | 230 mm | 230 mm |
Cross Slide Travel | 368 / 420 mm | 368 / 420 mm |
Tailstock Quill Taper | MT5 | MT5 |
Longitudinal Feeds Range | 0.022 - .0740 mm/rev | 0.022 - .0740 mm/rev |
Traverse Feeds Range | 0.044 - 1.480 mm/rev | 0.044 - 1.480 mm/rev |
Number of Inch Threads | 54 | 54 |
Range of Inch Threads | 7/16 - 80 TPI | 7/16 - 80 TPI |
Number of Metric Threads | 54 | 54 |
Range of Metric Threads | 0.45 - 120.00 mm | 0.45 - 120.00 mm |
Range of Diamerical Pitches | 7/8 - 160 DP (42 Kinds) | 7/8 - 160 DP (42 Kinds) |
Range of Module Pitches | 0.25 - 60.0 MP (46 Kinds) | 0.25 - 60.0 MP (46 Kinds) |
Main Motor Power | 7,500 w (10 HP) | 7,500 w (10 HP) |
Coolant Motor Power | 90 w (1/8 HP) | 90 w (1/8 HP) |
Overall Dimensions (LxWxH) | 3707 x 1230 x 1595 mm | 4707 x 1230 x 1595 mm |
Gross Weight | 3200 kg | 3300 kg |
